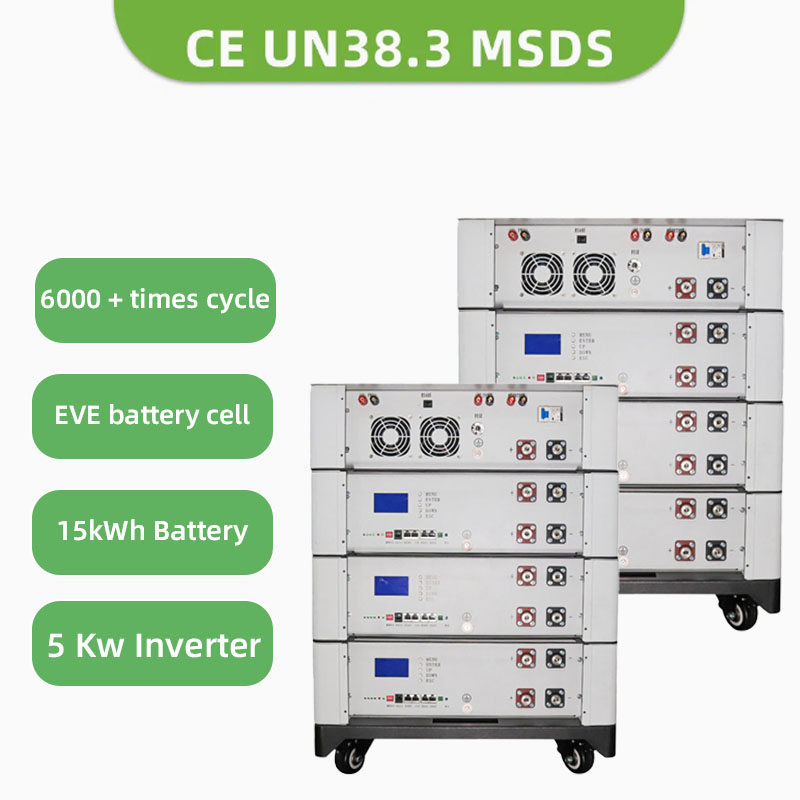

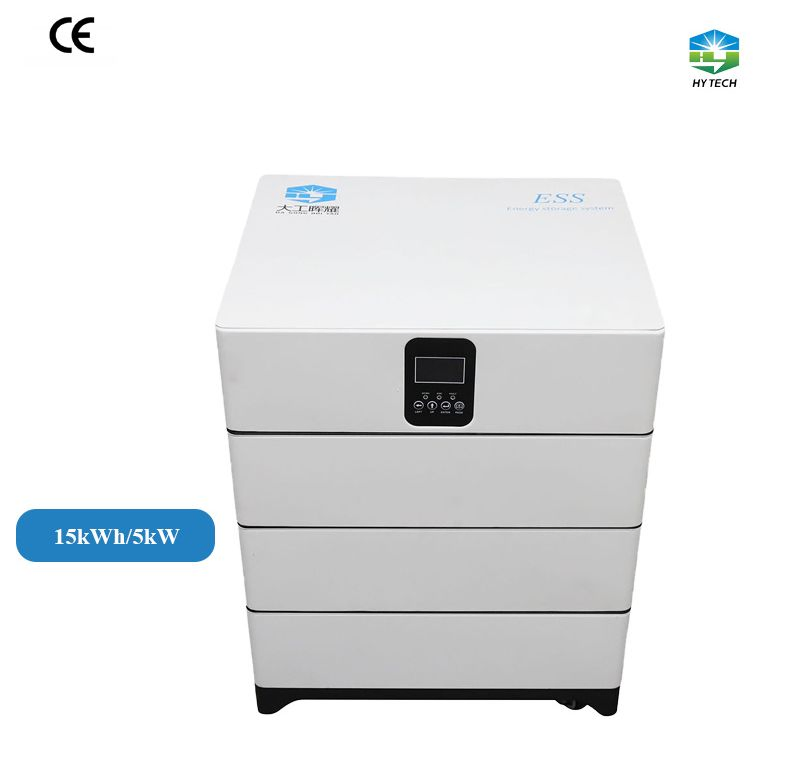

Advanced Home Energy Storage Solution - Hy Tech Dhdj-5000 Model

Customization:	Available
Weight:	50kg
Warranty:	5years

i

Basic Info

Model NO.

DHDJ-5000

Cycle Life

6000 Times

Nominal Capacity

5kwh-60kwh

Material

LiFePO4

Battery Cell

Grade a+

Voltage

51.2V

Specification

602*532*215mm

Origin

China

★

Product Description

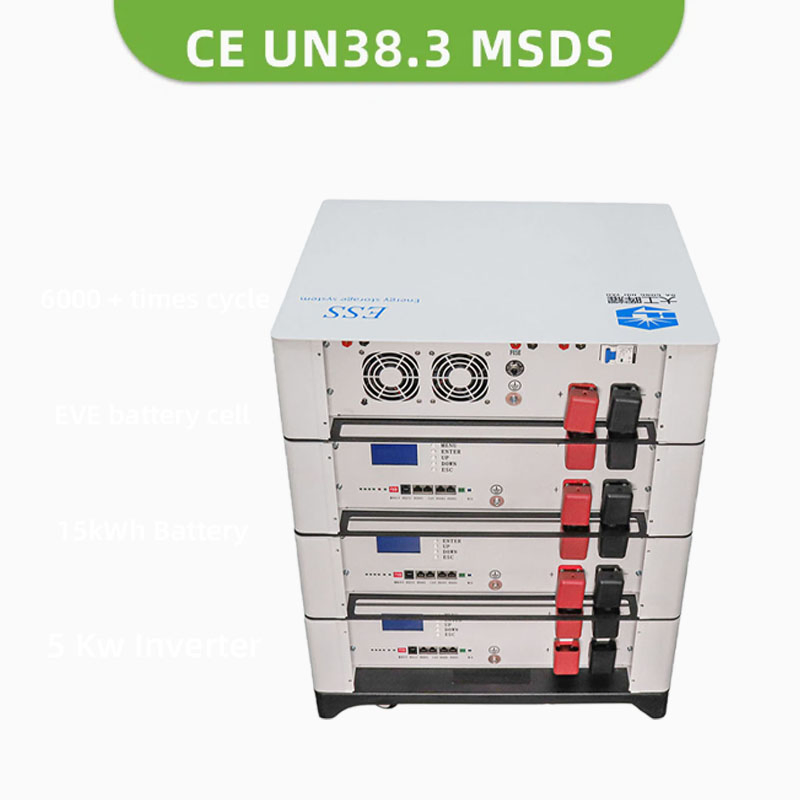

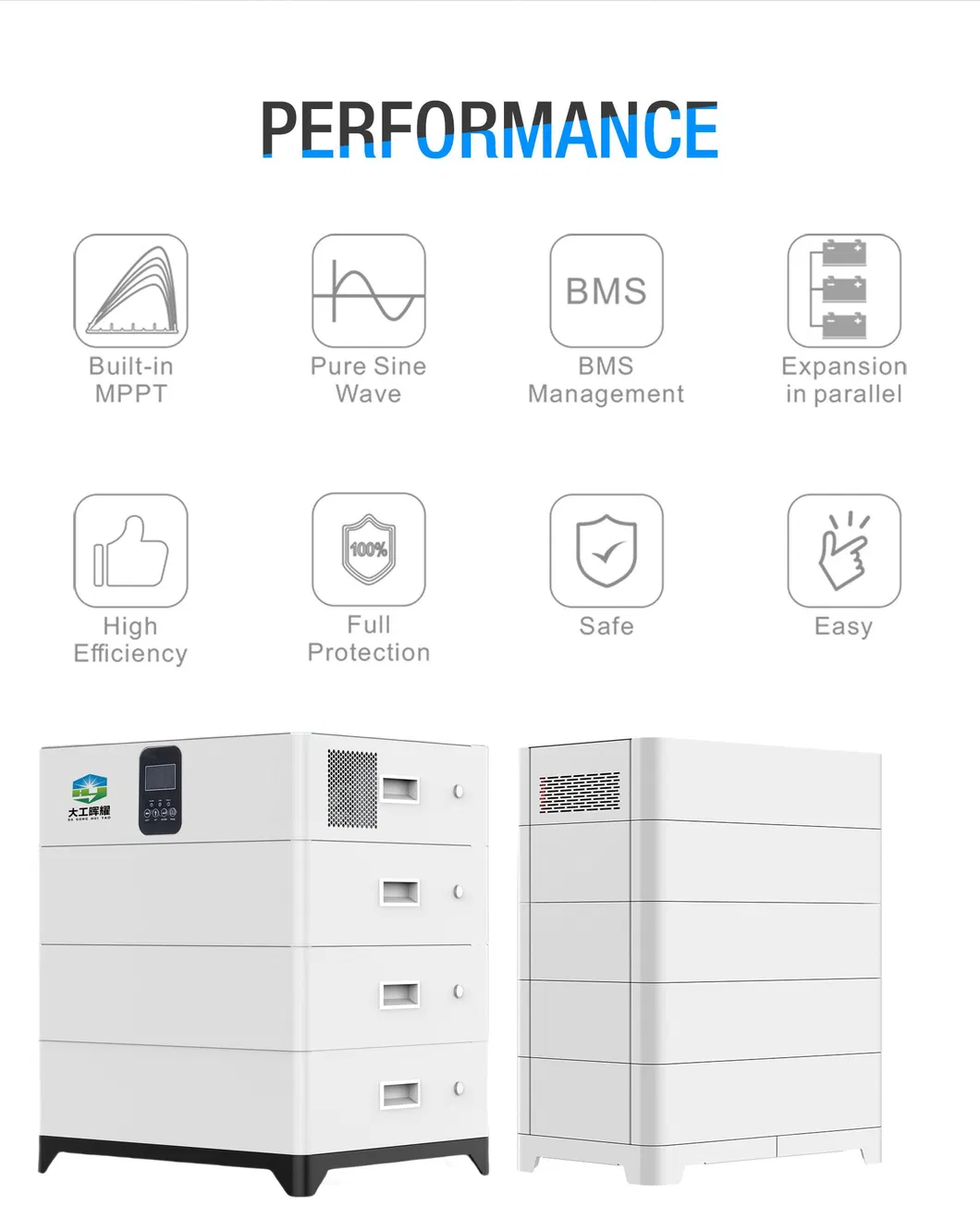

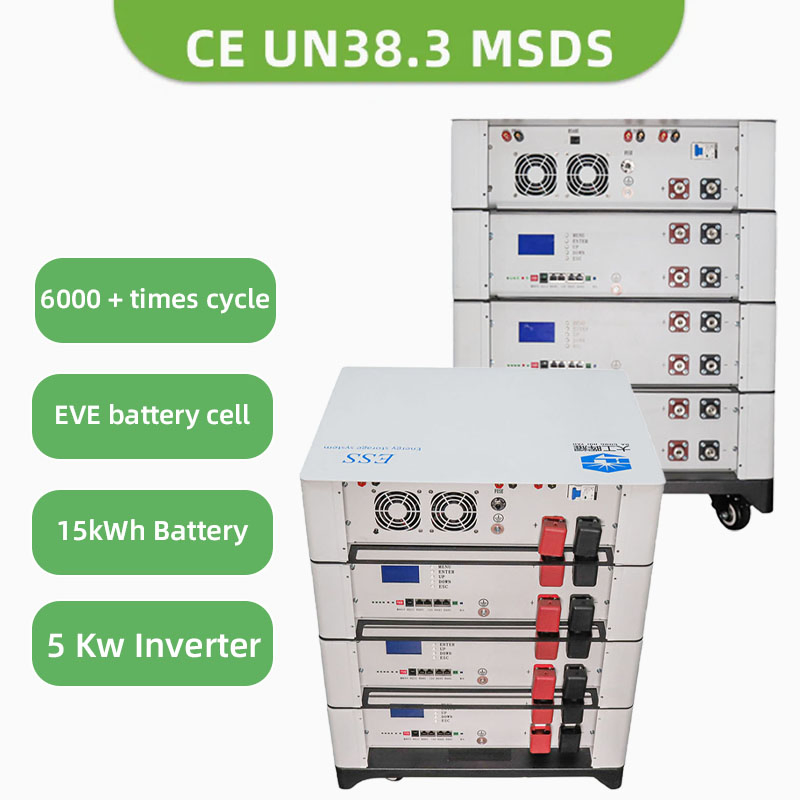

Battery Module Stacking Design:

Design a smart Battery Management System (BMS) to monitor the voltage, temperature, and current of the battery pack in real-time, ensuring safe and stable operation. Use a modular design to allow users to flexibly adjust battery capacity based on household energy needs.

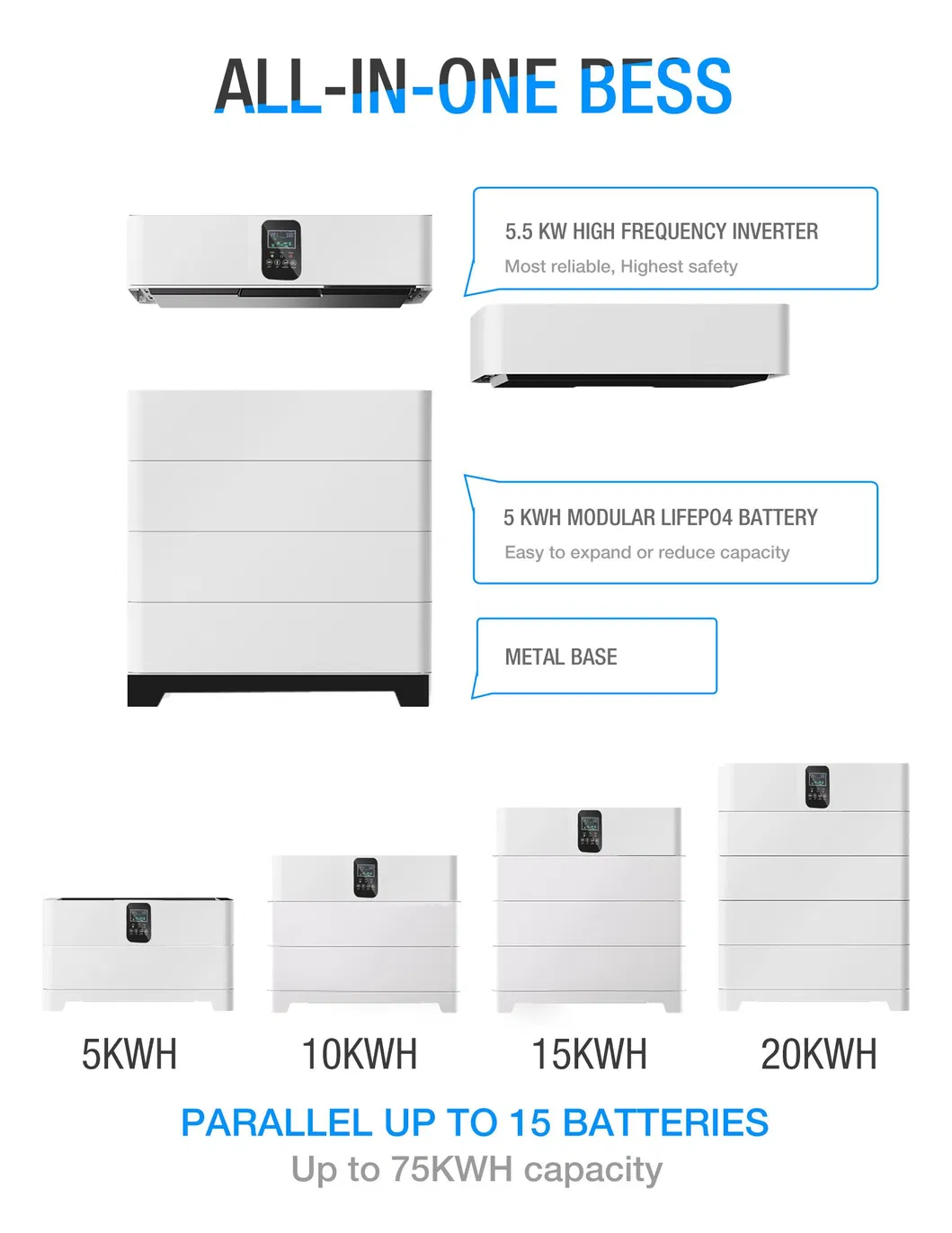

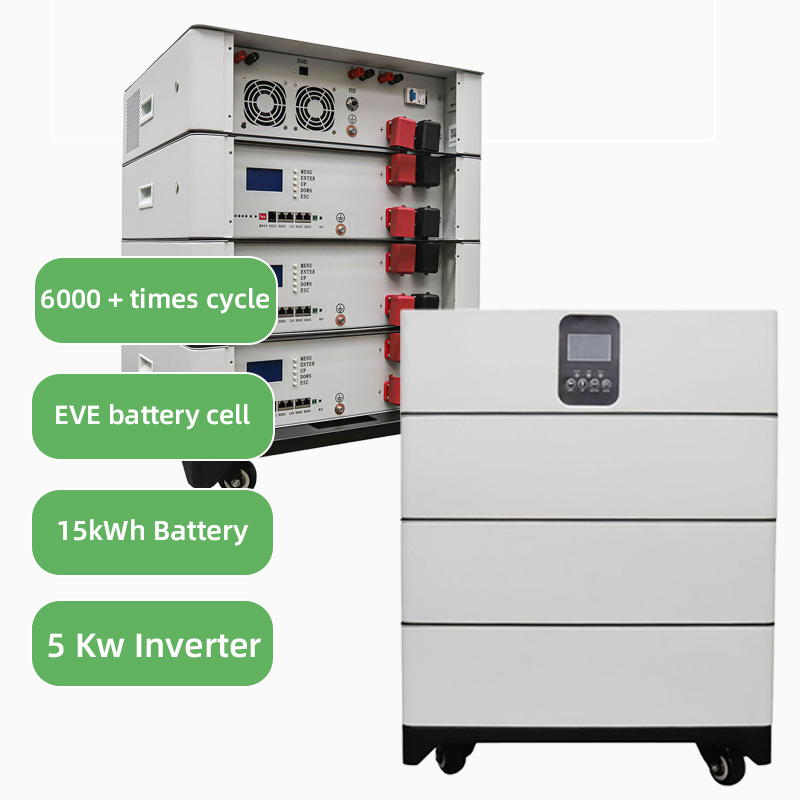

All-in-One Design:

Optimize the integration of the inverter, battery, and BMS to improve space utilization and aesthetics. Employ a compact inverter and efficient cooling solutions to ensure stable operation under high loads.

Communication Interface:

Consider using CAN bus or RS485 to enhance anti-interference capabilities, suitable for complex electromagnetic environments.

⚙

Product Parameters

Battery model	Voltage	Energy	Capacity	Size	Current	Material
DHDJ-5000*1	51.2V	100Ah	5.12kWh	602532215mm	100A	LiFePO4
DHDJ-5000*2	51.2V	200Ah	10.24kWh	602532430mm	100A	LiFePO4
DHDJ-5000*3	51.2V	300Ah	15.36kWh	602532645mm	100A	LiFePO4

✔

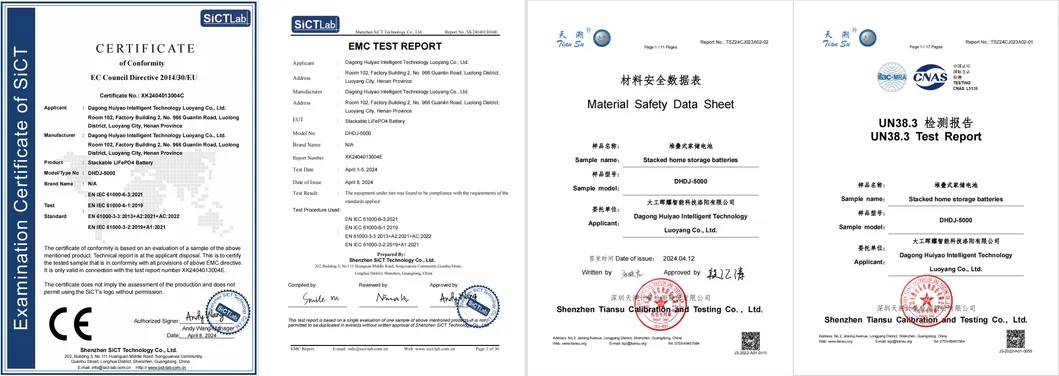

Certifications

ISO 9001 CE UN38.3 MSDS

⚒

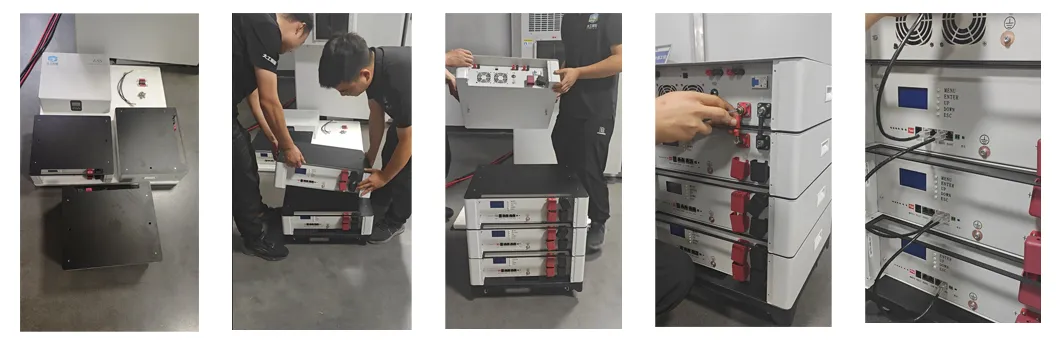

Installation Instructions

Our battery installation process is designed to be user-friendly. Here are the steps for installation:

1. Unboxing Preparation: Opening the packaging and removing the battery units.
2. Stacking Batteries: Follow guidance to stack the battery units together.
3. Parallel Connection: Connect the battery units in parallel for stable power.
4. Communication Cable: Connect to the battery management system.

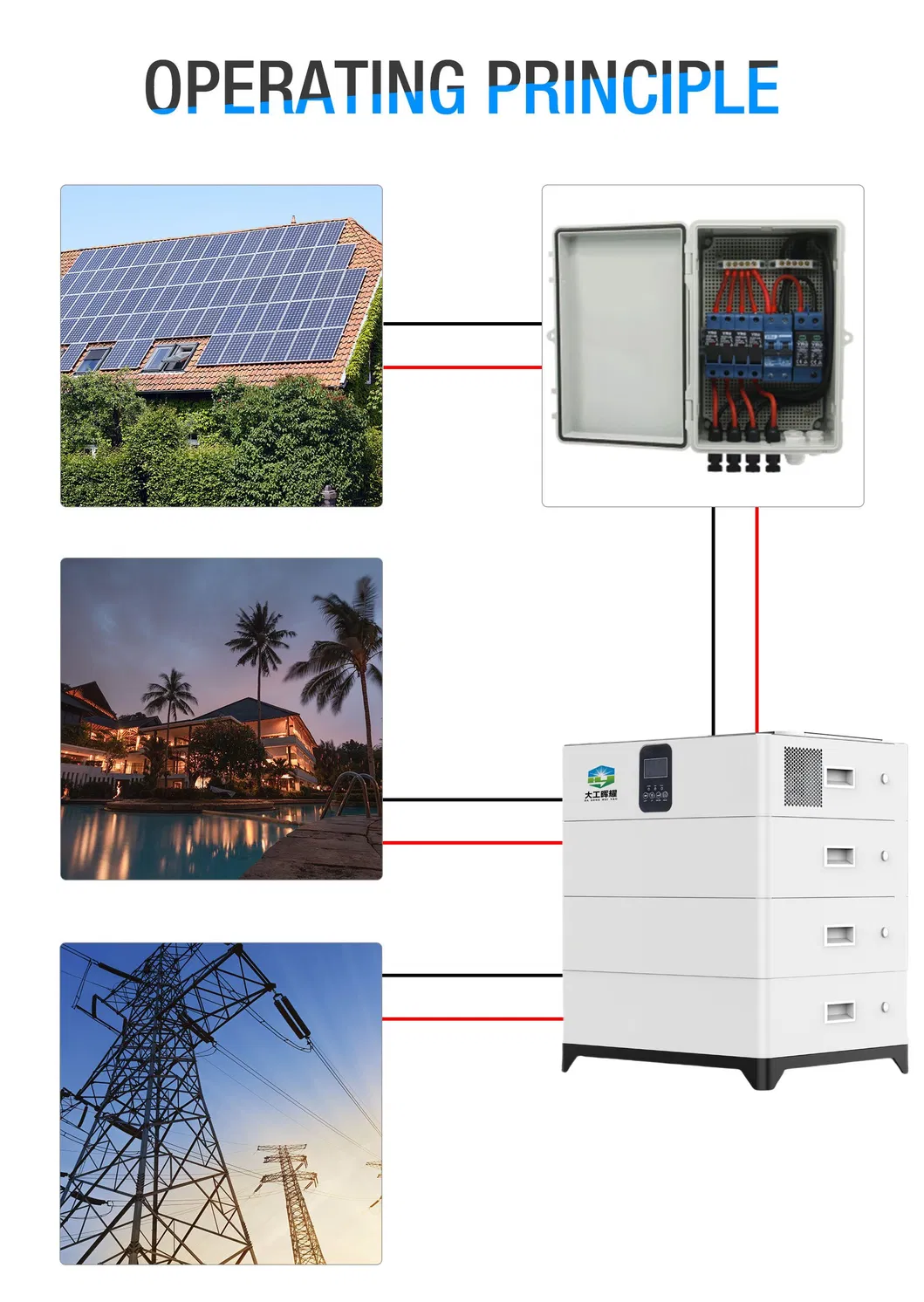

5. Connecting to Power: Integrate into PV, mains electricity, and output supply systems.

?

FAQ

Q: Is any electric or mechanical adjustment required during first-time operation? A: It will be set at the factory, no adjustment is required, and the system will automatically adapt.

Q: What maintenance is needed during operation? A: Parameters are factory-set. No manual changes needed. You can monitor status via the LCD screen or an optional WIFI module with an APP.

Q: How do I calculate the solar system needed for my yearly consumption? A: For 4000kWh/year, it's about 10.9kWh/day. For 2000kWh/year, it's about 5.4kWh/day. We determine battery and panel numbers based on these daily needs.

Q: What are the main products offered? A: Solar energy systems and components, such as inverters and Lithium batteries.

Q: What is the after-sales policy? A: Within the shelf life, product defects are replaced free of charge. Outside shelf life, replacements are offered at a 20% discount.

Q: How long is the price guarantee valid? A: 15 days.
