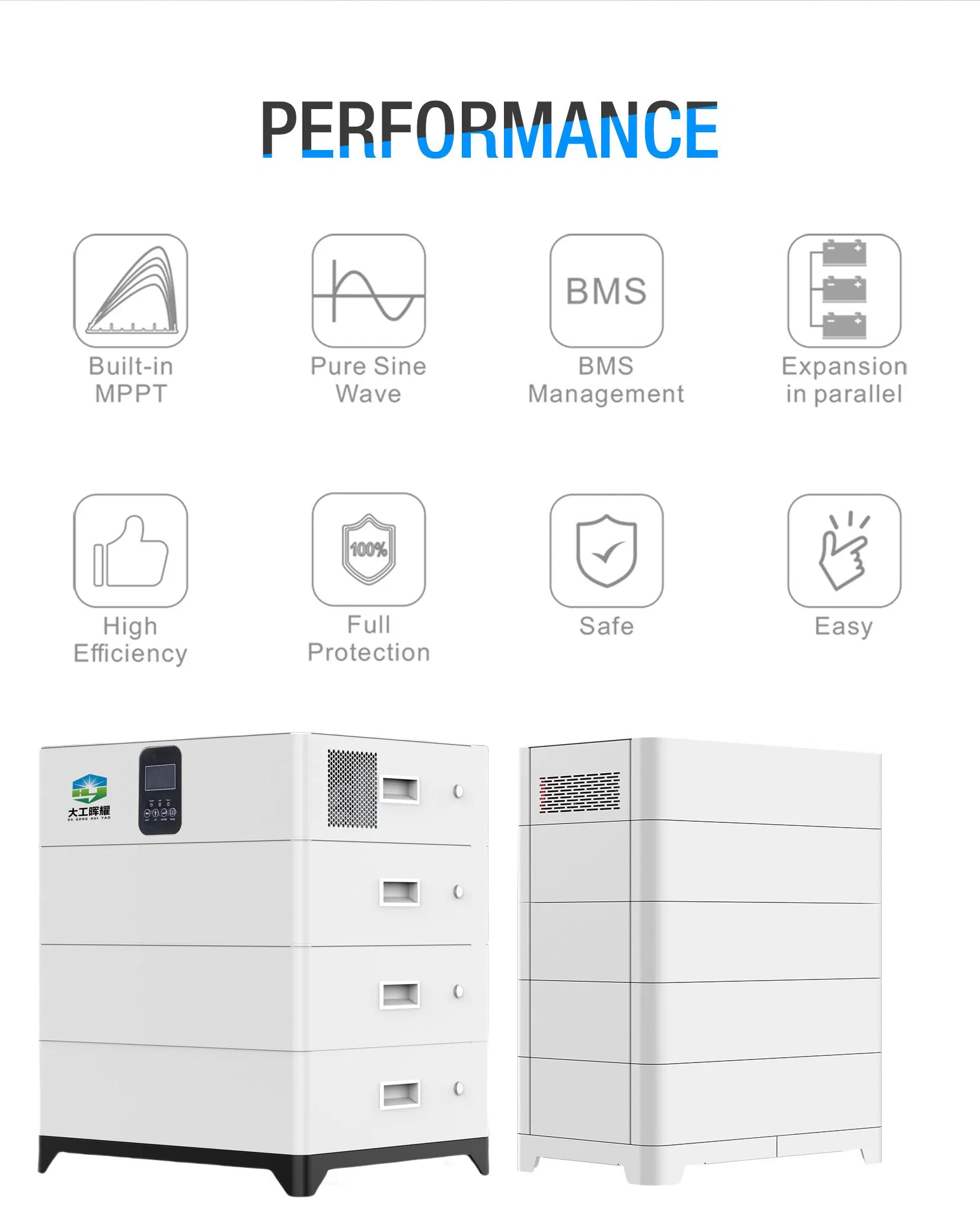

Design a smart Battery Management System (BMS) to monitor the voltage, temperature, and current of the battery pack in real-time, ensuring safe and stable operation. Use a modular design to allow users to flexibly adjust battery capacity based on household energy needs.

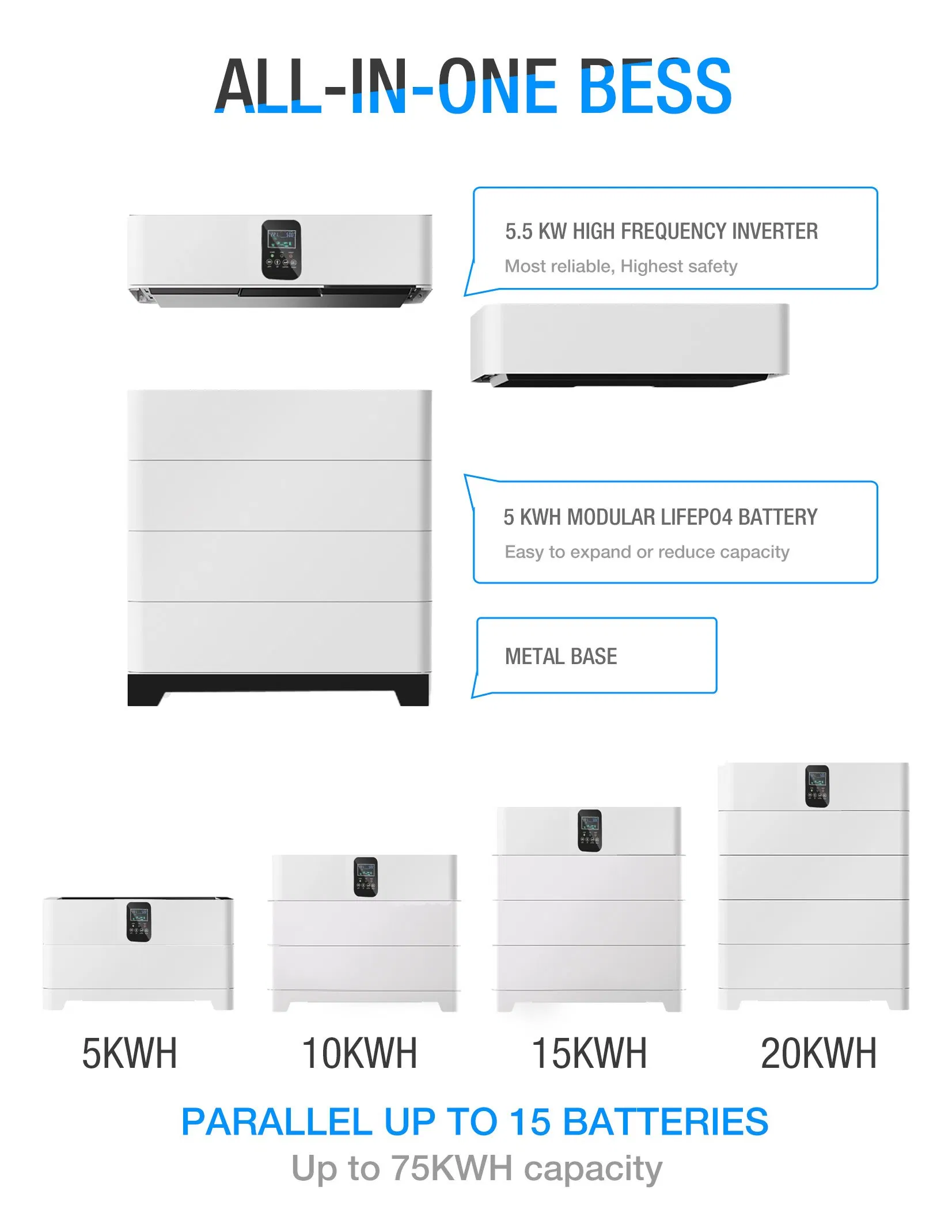

Optimize the integration of the inverter, battery, and BMS to improve space utilization and aesthetics. Employ a compact inverter and efficient cooling solutions to ensure stable operation under high loads.
Consider using CAN bus or RS485 to enhance anti-interference capabilities, suitable for complex electromagnetic environments. Design interfaces that support multiple communication protocols.

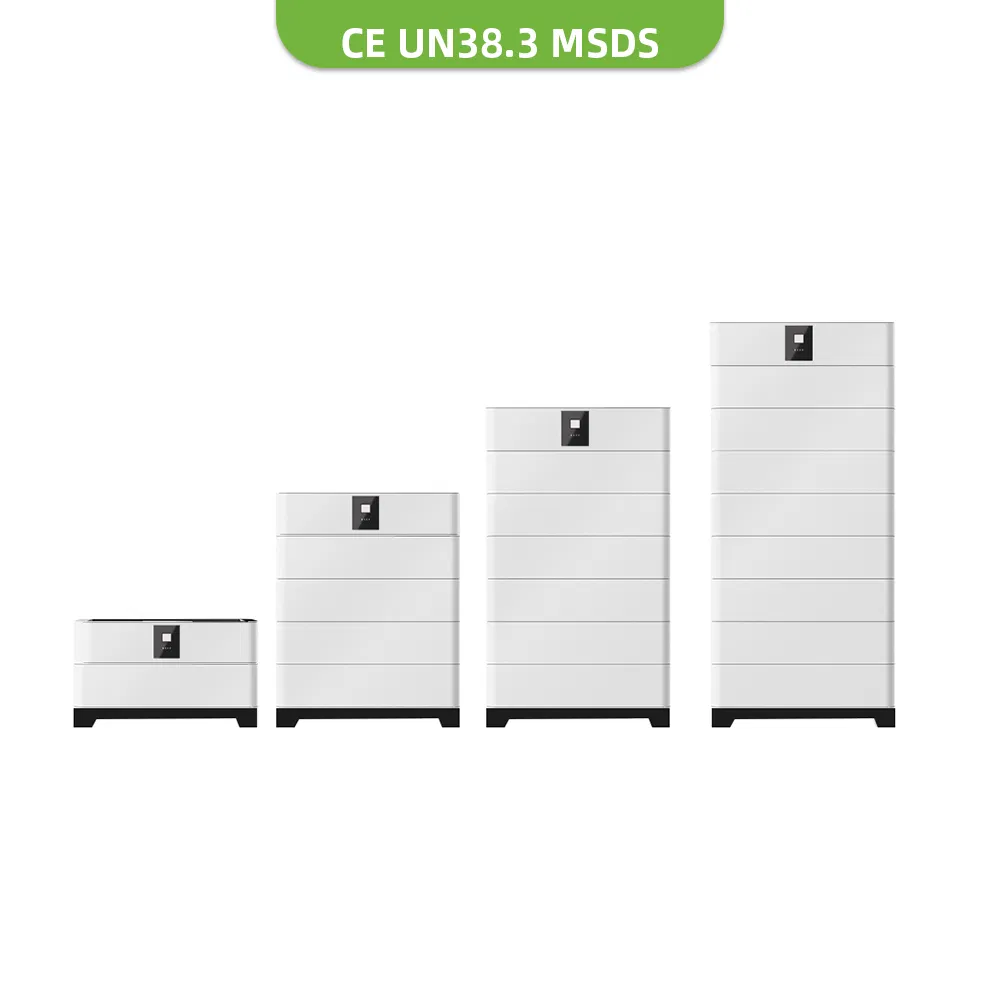

| Battery model | Voltage | Energy | Capacity | Size | Current | Material |
|---|---|---|---|---|---|---|
| DHDJ-5000*1 | 51.2V | 100Ah | 5.12kWh | 602*532*215mm | 100A | LiFePO4 |
| DHDJ-5000*2 | 51.2V | 200Ah | 10.24kWh | 602*532*430mm | 100A | LiFePO4 |
| DHDJ-5000*3 | 51.2V | 300Ah | 15.36kWh | 602*532*645mm | 100A | LiFePO4 |

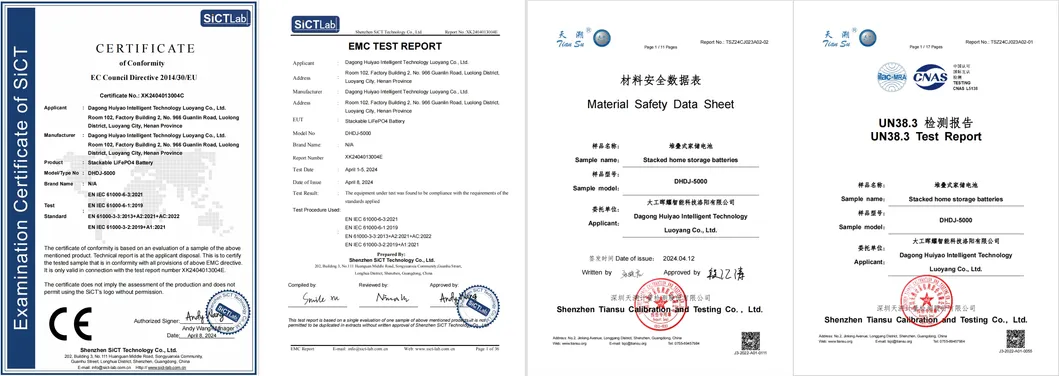

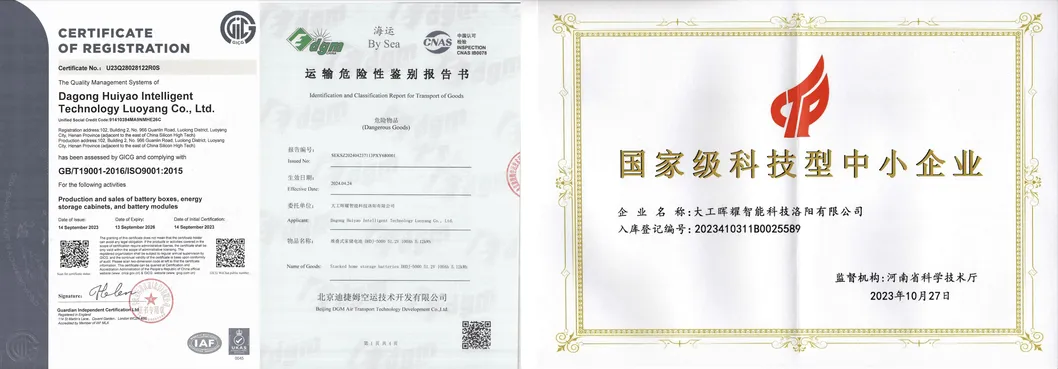

ISO 9001 CE UN38.3 MSDS
Our battery products are packaged using specialized, customs-approved hazardous packaging boxes to ensure compliance with international dangerous goods transportation standards. We hold safety transportation certification for both land and sea transport.

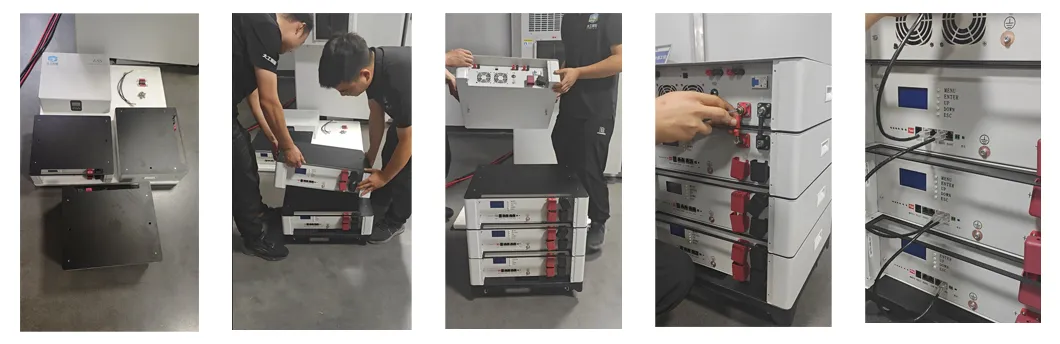

1. Unboxing Preparation: Open the packaging and remove the battery units.
2. Stacking Batteries: Stack the battery units together without special tools.
3. Parallel Connection: Connect the battery units in parallel for stable output.
4. Communication Cable: Connect to the battery management system.

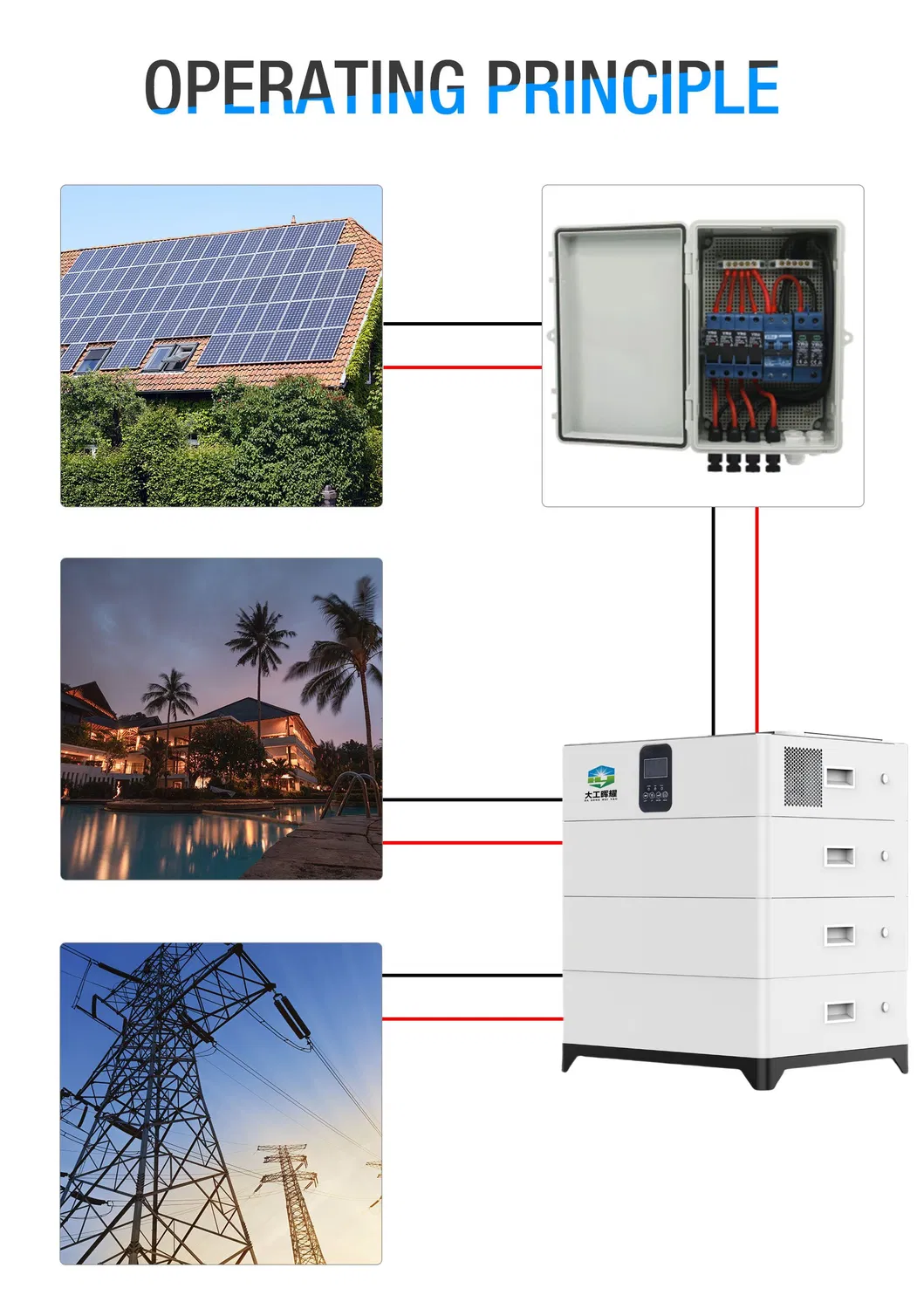

5. Connecting to Power: Integrate into PV, mains, and output systems.

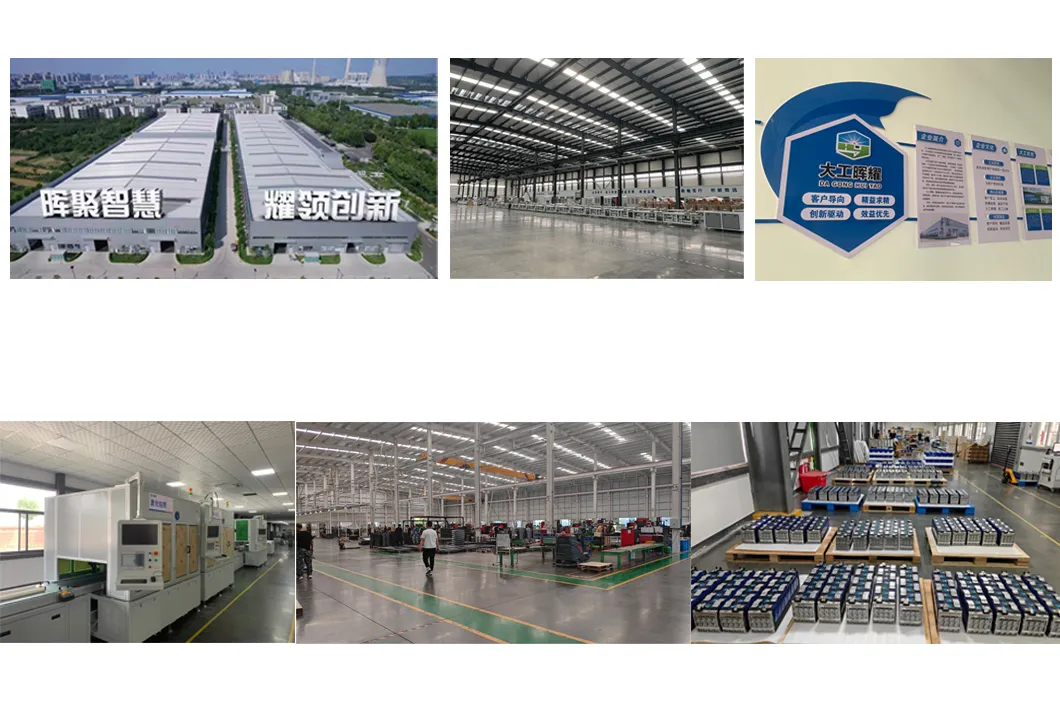

A professional battery energy storage system (BESS) provider that provides reliable energy storage solutions globally by integrating expertise in electrochemistry, power electronics and system integration. With a factory area exceeding 10,000 square meters, we create a sustainable future through green development.
