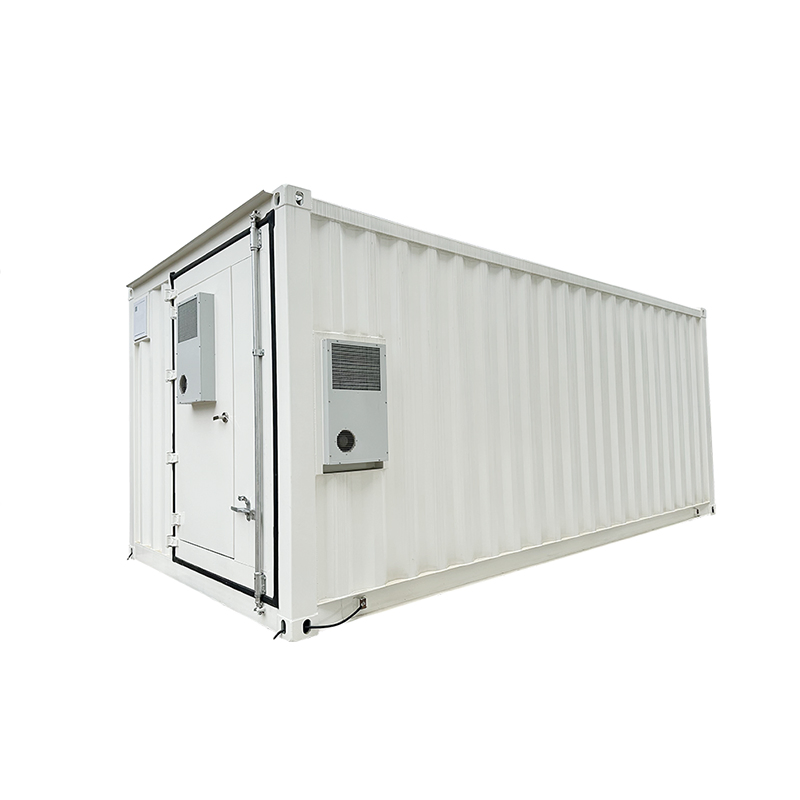

School, Factory Home 100kwh 200kwh 500kwh 1mwh Battery Energy Storage Solution

Customization:	Available
After-sales Service:	After- Sales Service
Warranty:	3 Years, 5 Years

Send Inquiry

Product Description

Basic Specifications

ConditionNew

CertificationISO, CE

ApplicationHome, Industrial, Commercial, School, Factory

Specification100kwh, 233kwh

Type of CellLithium Iron Phosphate(LFP)

Cell Parameter3.2V/314ah

CoolingLiquid Cooling

Protection ClassIP55

Rated Capacity5.01 Mwh

Rated Voltage1331.2V

OriginChina

Production Capacity1000set/Month

Product Description

Items	Parameters
Type of cell	Lithium Iron Phosphate(LFP)
Cell parameter	3.2V/314Ah
Max. charge/discharge power	0.5C
Configuration of system	1P416S×12
Rated capacity	5.01 MWh
Rated voltage	1331.2V
Voltage range	1164.8~1497.6V
Cooling method	Liquid Cooling
Operating temperature	−30~50ºC
Humidity	≤95%RH, no condensation
Altitude	≤3000m
Noise level	≤80dB(A), @1m / 75dB(optional)
IP grade	IP55
Fire protection	Temperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External communication interface	Ethernet/CAN/RS485
Dimension(L×W×H)	6058×2438×2896mm
Weight	≈42000 kg

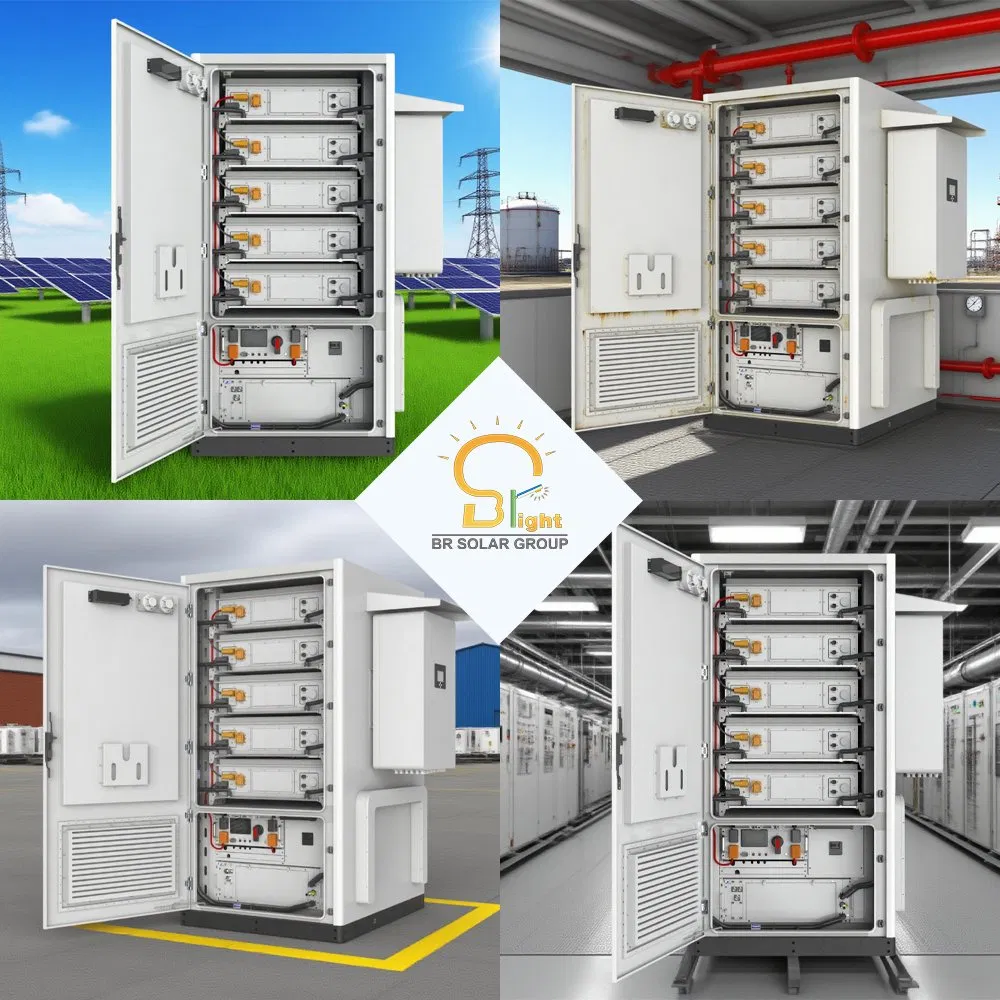

Visual Presentation

Frequently Asked Questions

What is the battery chemistry used in this system?

The system utilizes Lithium Iron Phosphate (LFP) cells, known for their safety, long cycle life, and thermal stability.

How is the system cooled?

This energy storage solution uses an advanced Liquid Cooling method to maintain optimal operating temperatures between -30°C and 50°C.

What safety certifications does the product hold?

The product is fully certified with ISO and CE standards, ensuring international quality and safety compliance.

Can this be used for outdoor industrial applications?

Yes, with an IP55 protection rating and C4/C5 optional corrosion-proof grades, it is suitable for various industrial and outdoor environments.

What are the built-in fire protection features?

Safety is prioritized with temperature sensors, smoke and combustible gas detectors, deflagration venting, gas fire extinguishing, and a water sprinkler system.

What are the available communication interfaces?

The system supports multiple external communication interfaces including Ethernet, CAN, and RS485 for seamless integration.
