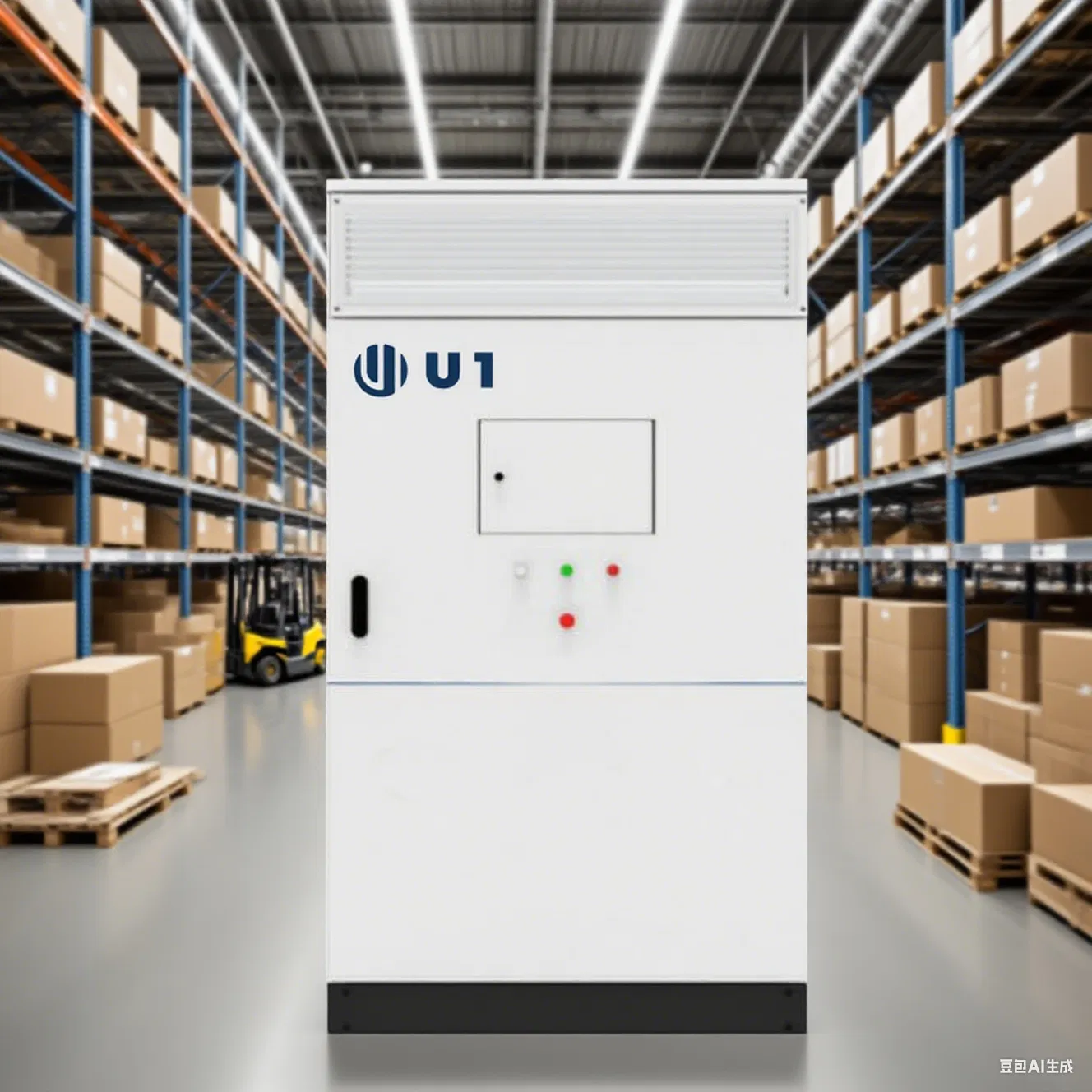

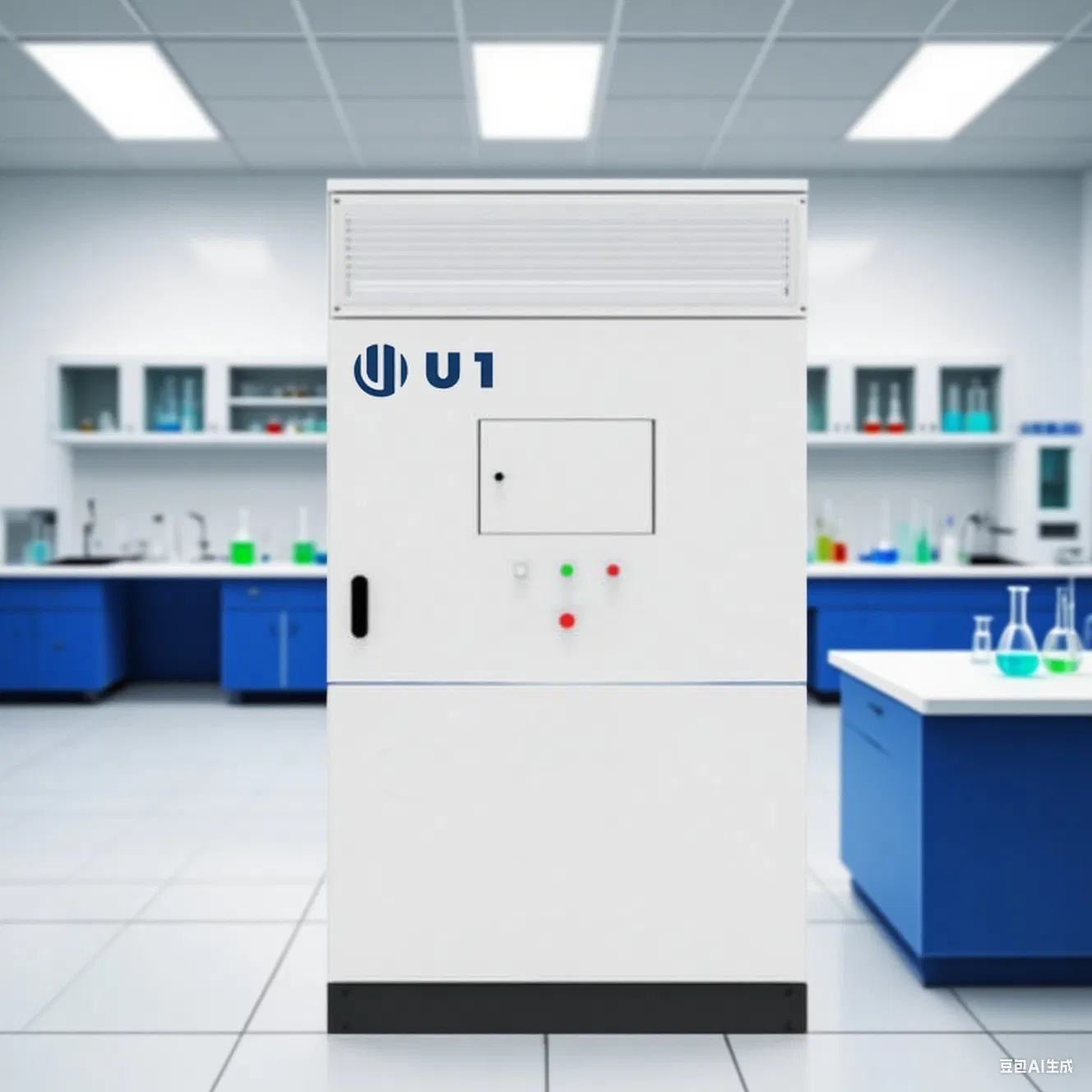

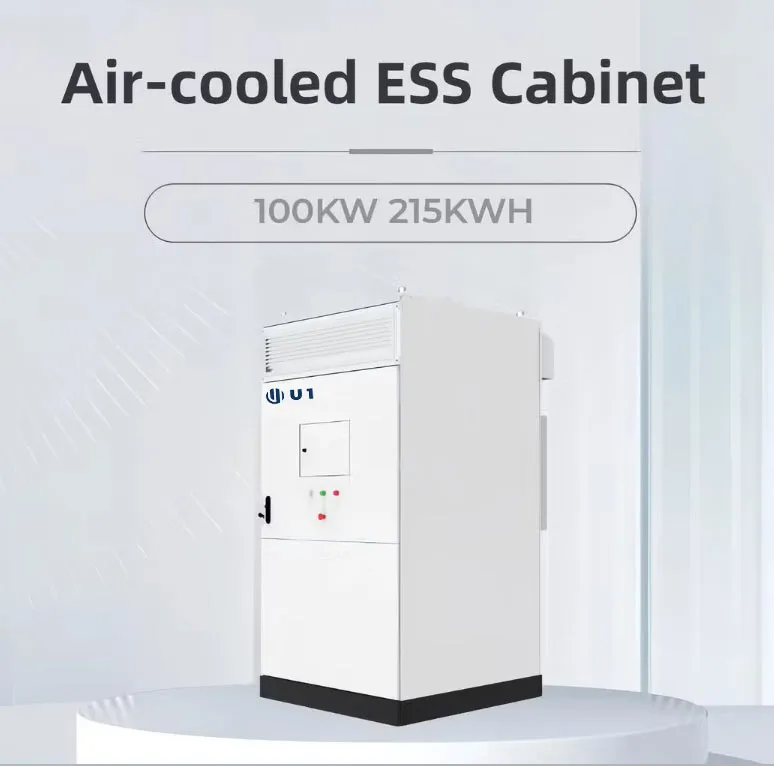

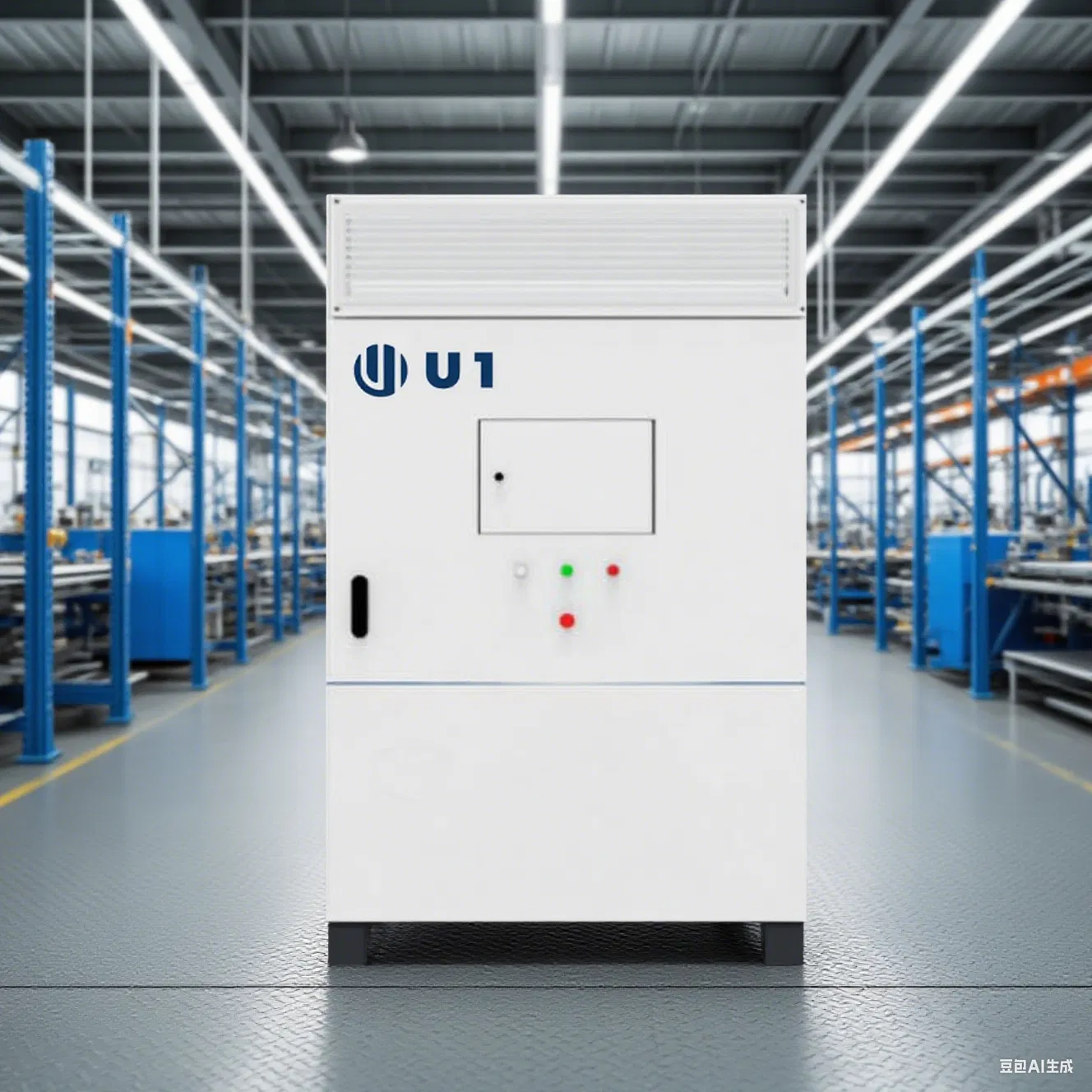

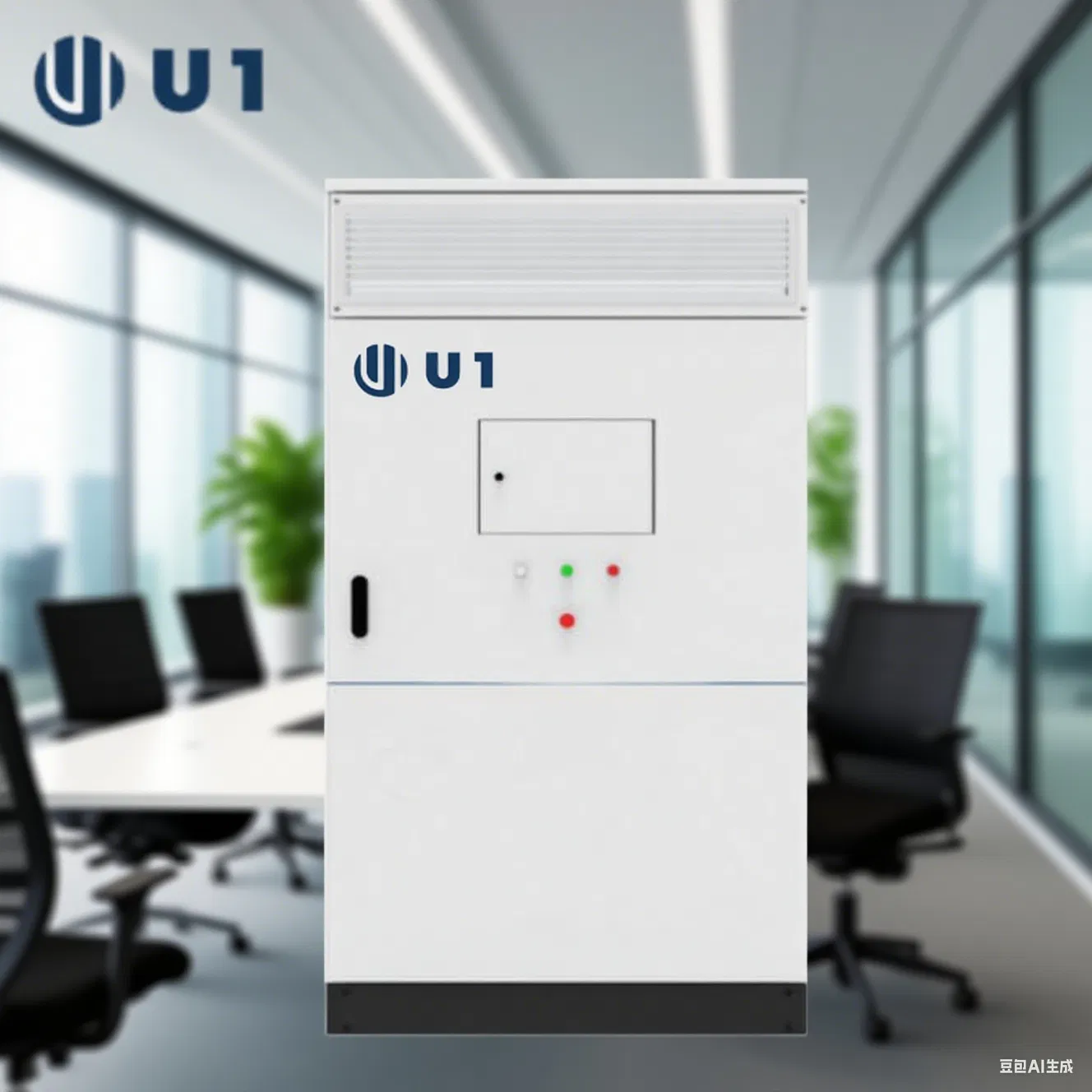

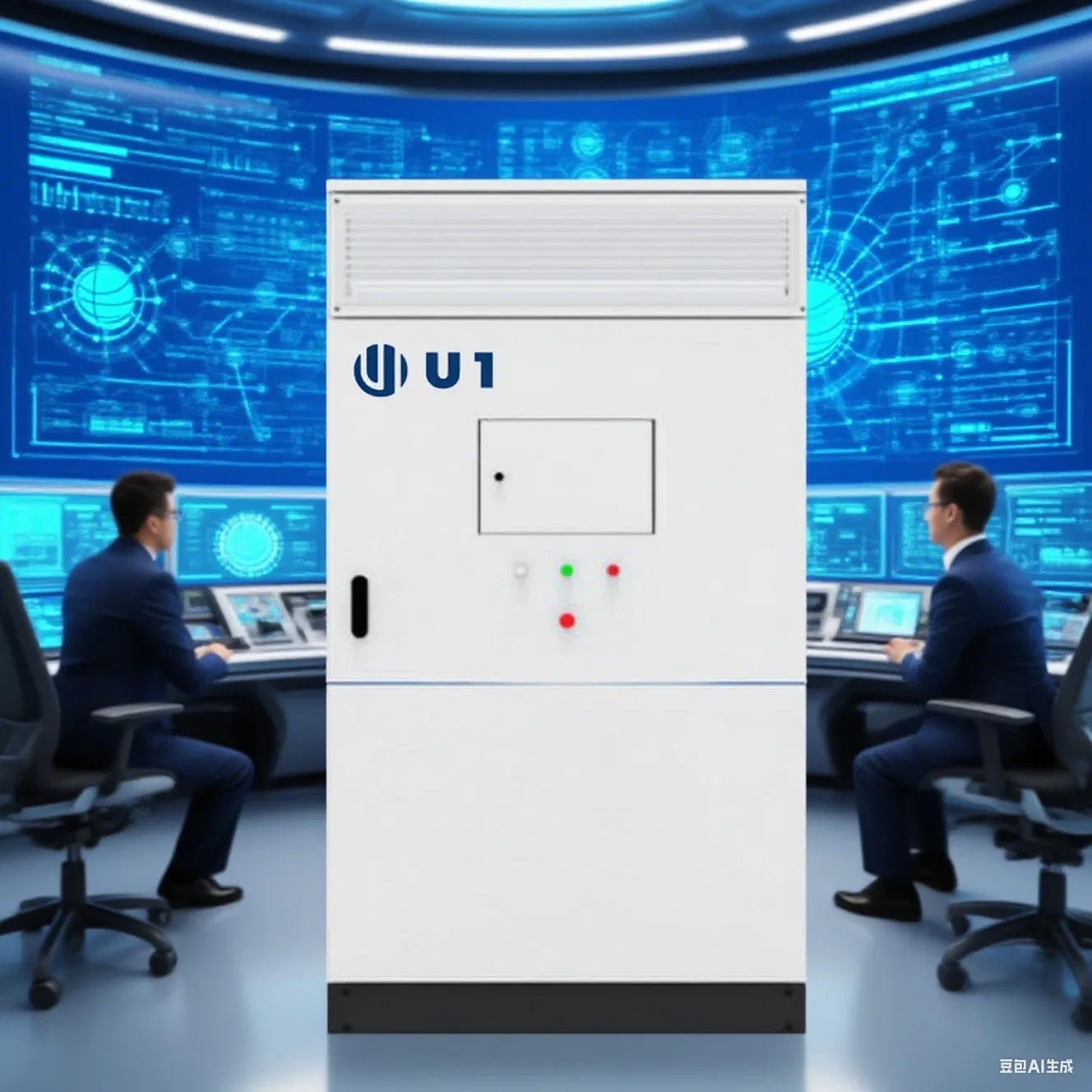

Commercial Bess LiFePO4 Scalable Battery Solar Energy Storage System - ISO9001 Certified Power Solution

Customization:	Available
Weight:	2.6t
Warranty:	2 Years

📊 Basic Information

Model NO.

U1-03-215

Cycle Life

8000 times

Nominal Capacity

215kwh

Certification

ISO9001:2000

Protection Grade

IP65

Battery Type

LiFePO4

Rated Voltage

768 V

Specification

1250*1300*2350 mm

⚙️ Technical Parameters

DC Battery Parameters

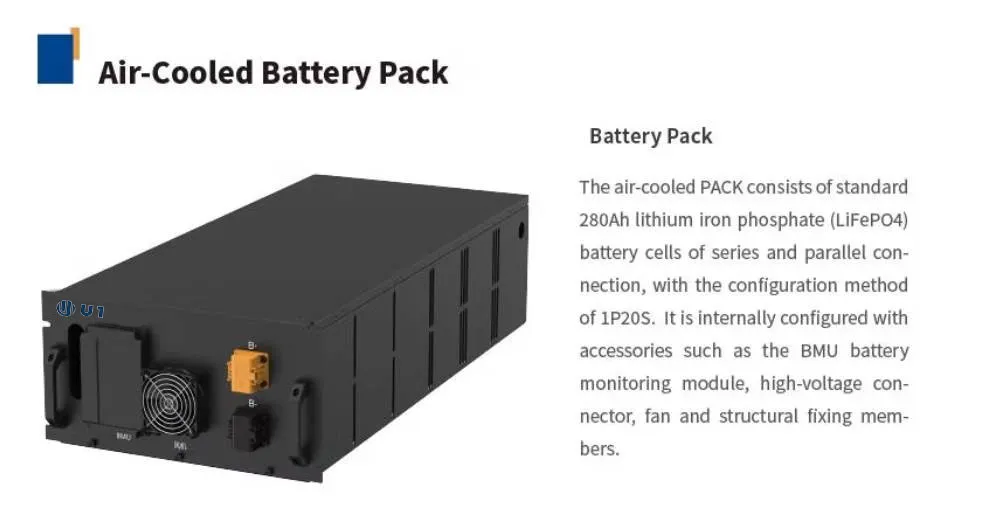

Battery Cell Type	LFP 280Ah
Battery System Configuration	215kWh/1P240S
Battery Voltage Range	600~876V DC
System Rated Voltage	768V DC
AC Side Parameters
AC Rated Power	100kW
AC Maximum Power	110kW (continuous for 1min)
Grid Rated Voltage	400V AC
Rated Grid Frequency	50Hz

🌟 Key Features & Benefits

U1 215KWH commercial & industrial energy storage system leverages cutting-edge cabinet-level liquid cooling and temperature balancing strategies. With a cell temperature variation kept under 3°C, this ensures enhanced cell temperature uniformity and prolongs battery longevity.

Compact Design: Requires only 1.4m² footprint for rapid installation.

High Integration: 233kWh energy in a single robust cabinet.

Efficient Cooling: Optimized in-PACK duct design for top-tier efficiency.

Ultimate Safety: Aerosol + Active Warning fire suppression system.

Black Start: Capability for autonomous power restoration.

Flexible Expansion: Modular design for scalable parallel solutions.

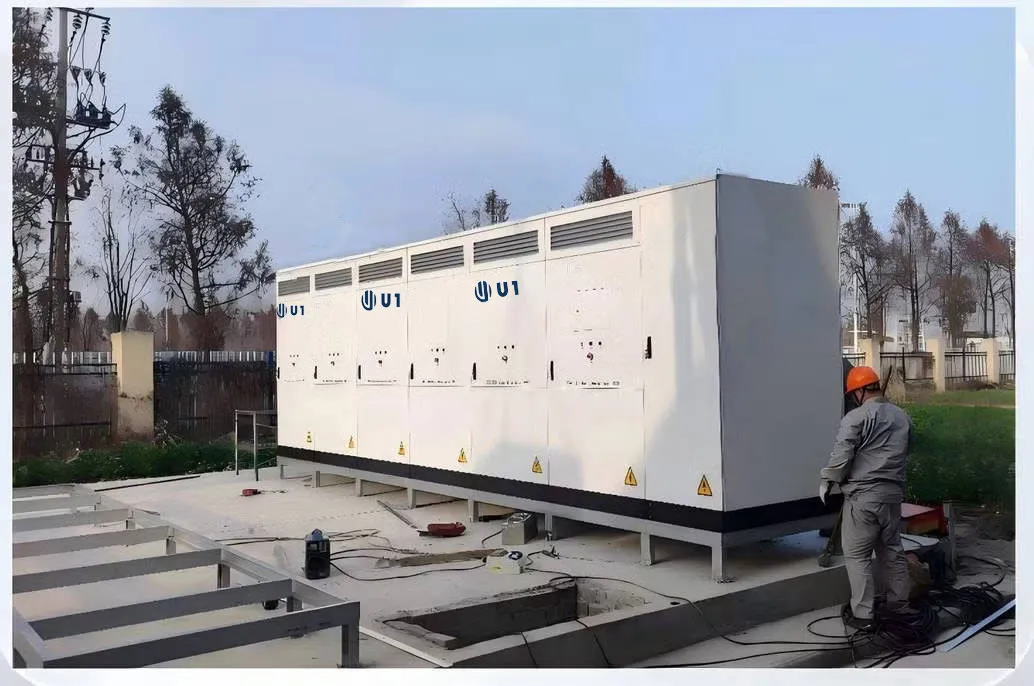

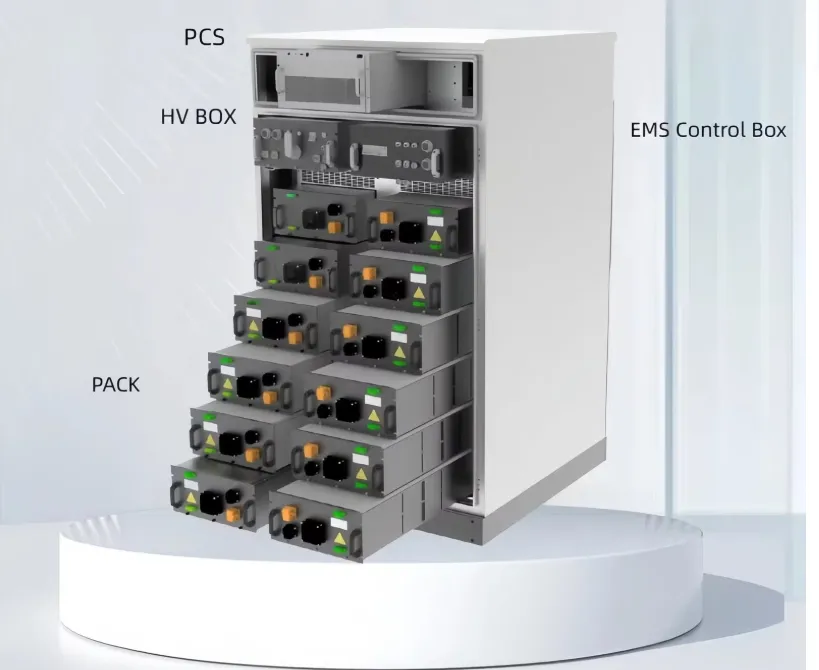

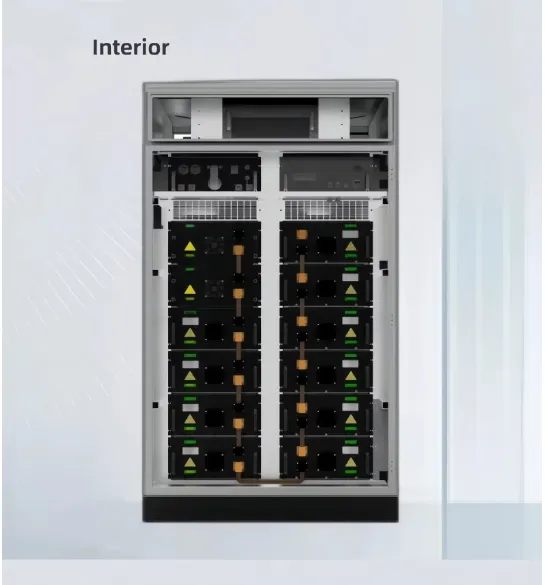

📸 Detailed Photos
