| Model NO. | HT-500/1000-EC |
| Nominal Voltage | 380/400/415/480V 3 Phase |
| Nominal Capacity | 250kwh, 500kwh, 1mwh, 2mwh |
| Battery Type | LiFePO4/Lithium Battery/Gel Battery |
| Cycle Life | 6000+ Cycles |
| Warranty | 5 Years |

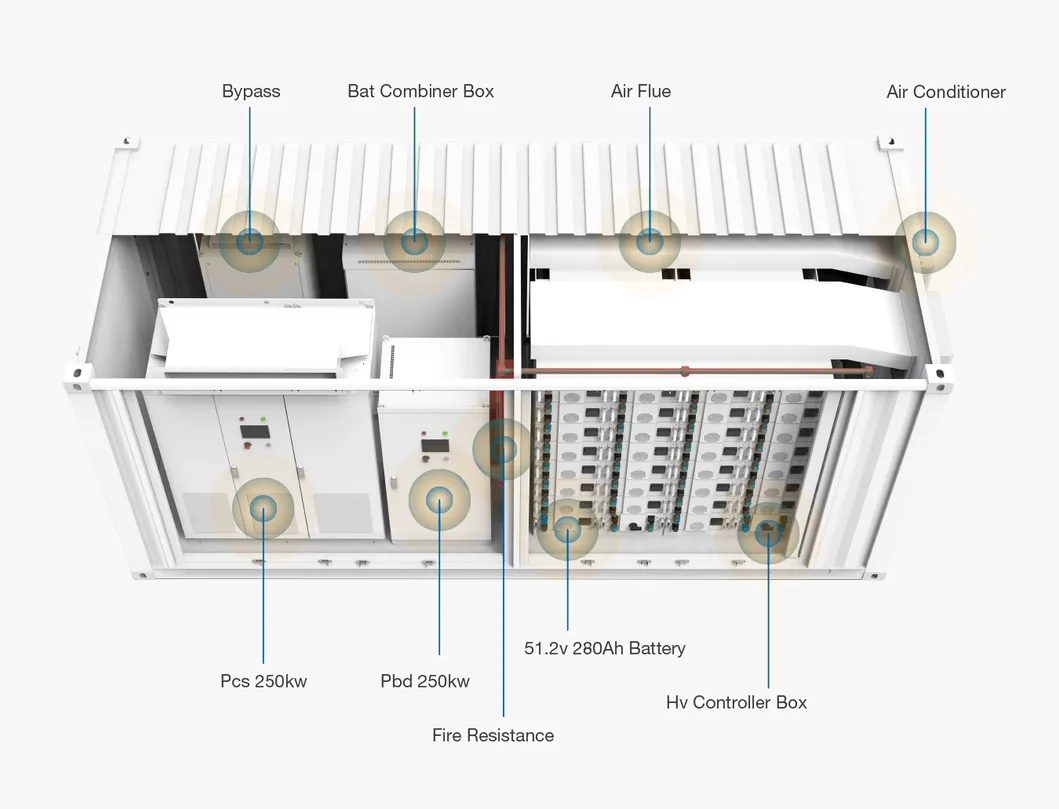

| Item | Description | Qty | Remarks |
|---|---|---|---|
| PV Solar Panel | HT560M-72H | 960 | Total 537.6KW |

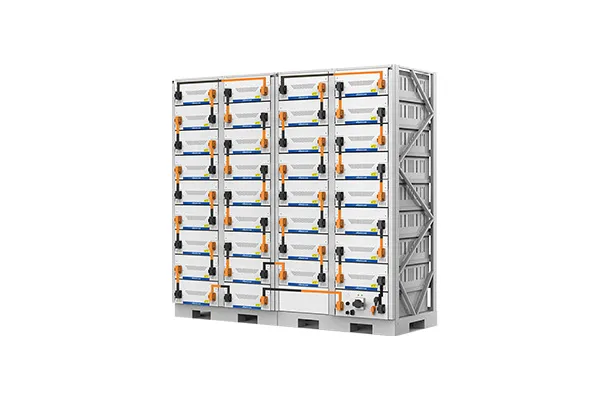

| Battery Bank | 280Ah Lithium Module | 150 | 51.2V 280AH (14.3kWh per module) |
| Combiner Box | 1500V-1500A | 1 | For multiple battery racks |
| Controller | 1500V 300A | 15 | High Voltage Control |

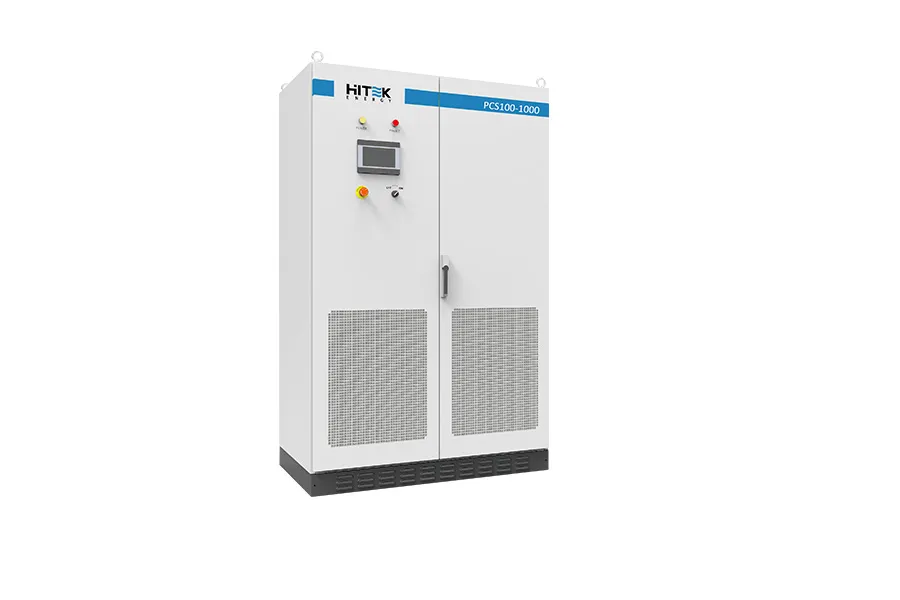

| PCS Inverter | PCS500 | 1 | 250kW battery inverter |

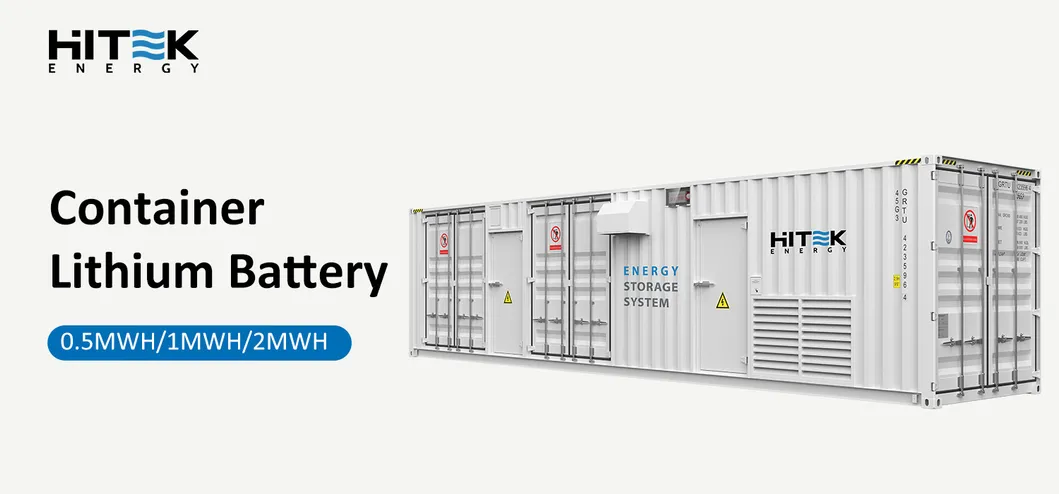

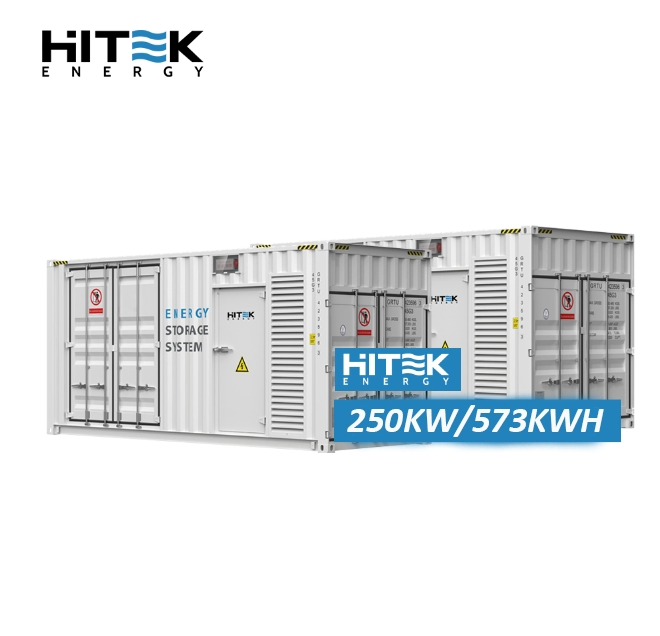

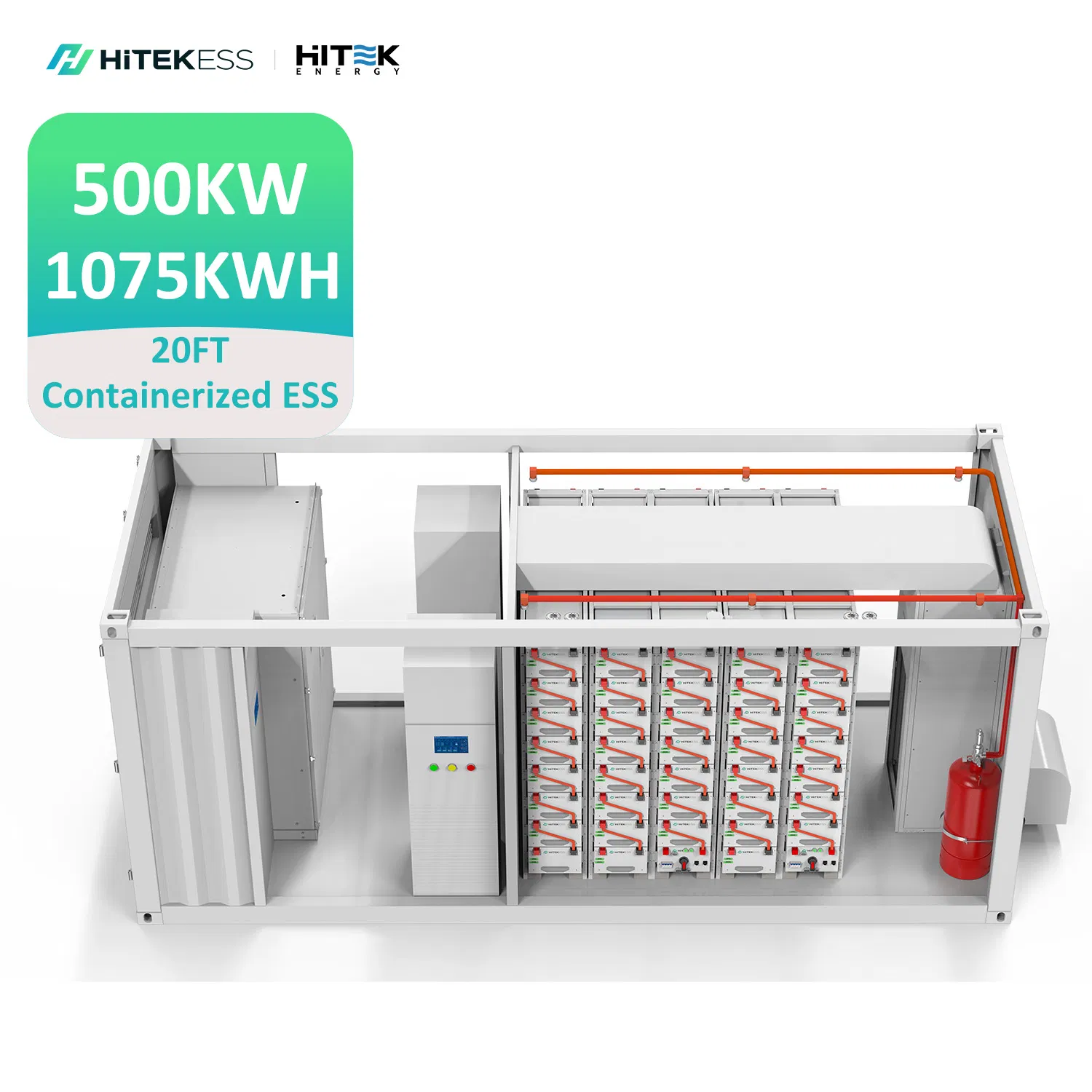

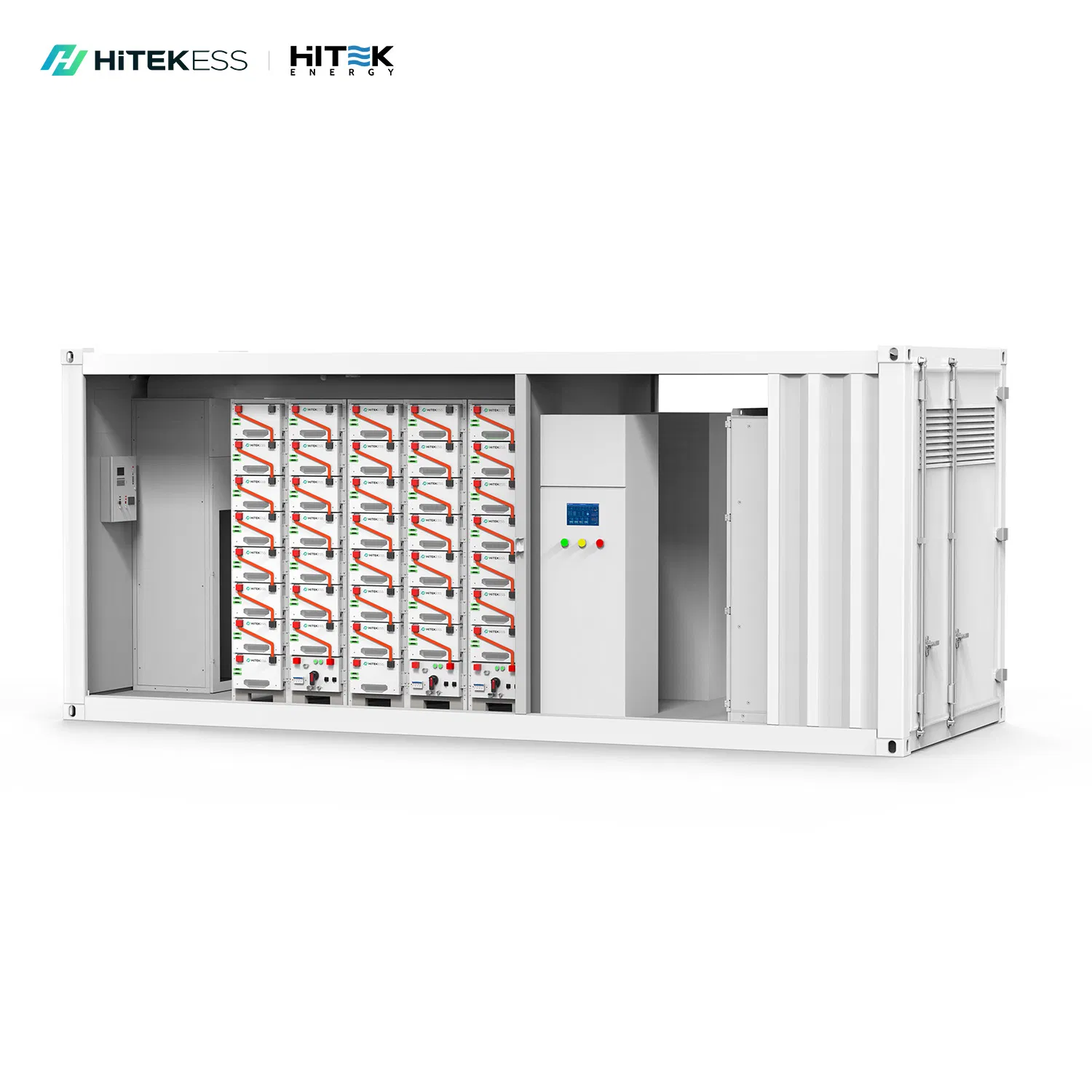

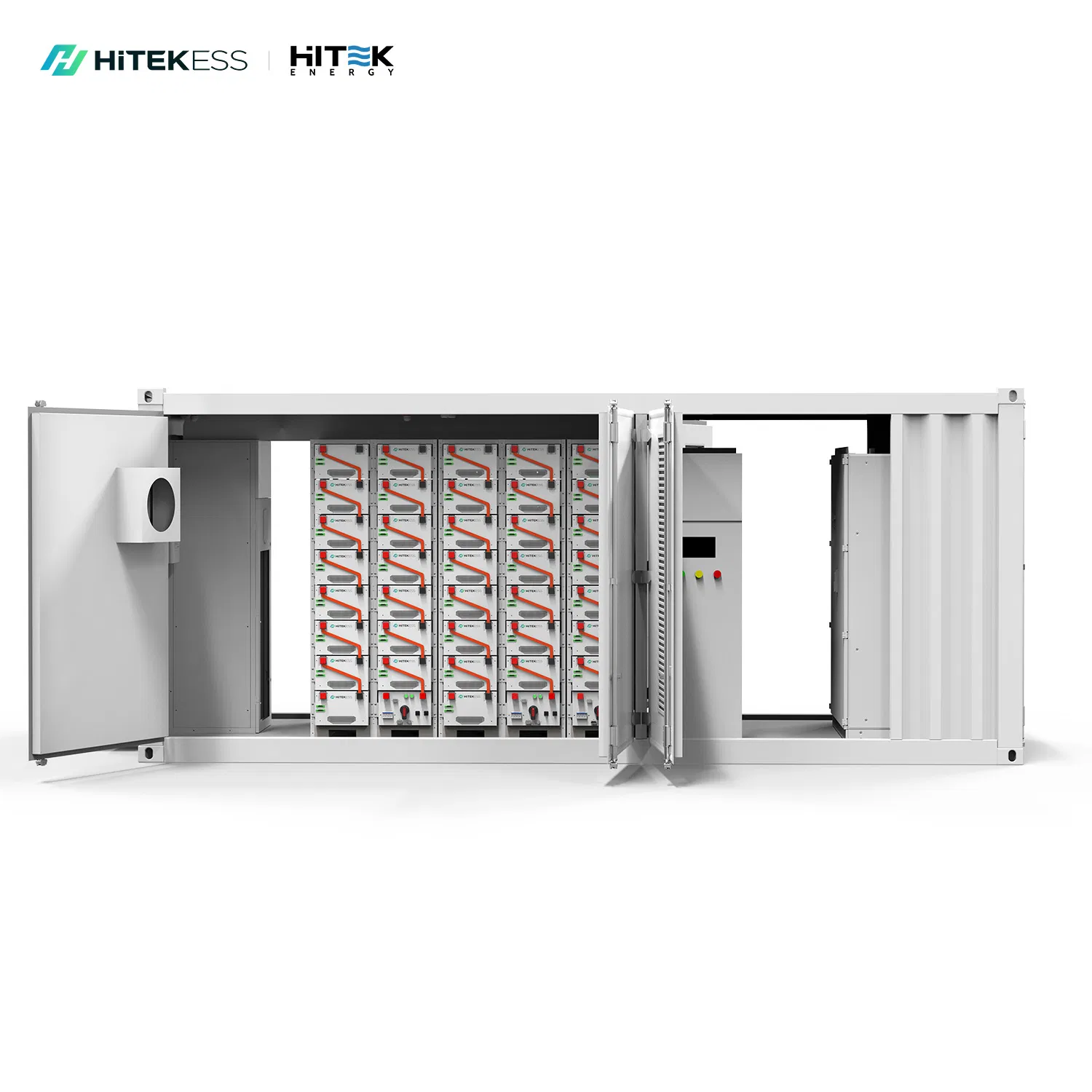

| 20FT Container | IP54 Outdoor | 1 | Includes Fire-resistance & AC |

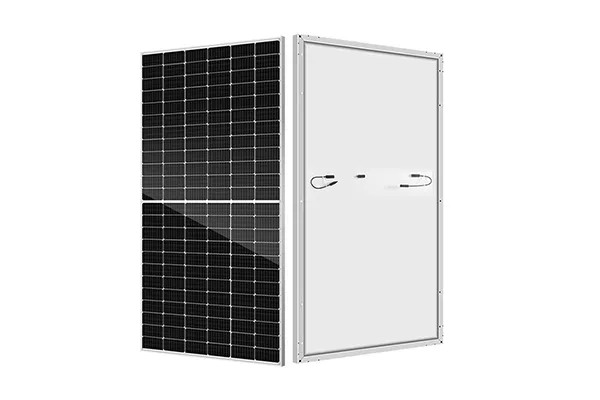

Model: HT560M-72
Peak Power: 560Wp
Voc: 49.84V | Isc: 14.14A
Vmp: 41.08V | Imp: 13.64A
Dimensions: 2279*1134*35mm
Capacity: 100-1000KW. Can be used alone or with solar chargers. Features include parallel scalability, programmable working modes, and touchscreen LCD control.
Standard modules consisting of 150 single cells. Each unit provides 14.3kWh at 51.2V nominal voltage, achieving high-density energy storage.
