DIN Rail & Wall mounting Wide Temperature Industrial Networking Power line Solution

1 / 5

DIN Rail & Wall mounting Wide Temperature Industrial Networking Power line Solution

Customization:	Available
Standard:	Homeplug AV2
OEM:	Accepted

Send Inquiry

Product Description

📋 Basic Information

Model NO.

WD-1201M-DIN(T/T4/V3/S/D)

Usage

Industry

Performance

Powerline

Bandwidth

1200Mbps

Frequency

2-68MHz

Specification

120*89*44mm

Origin

China

Capacity

5000/Month

⚙️ Product Description

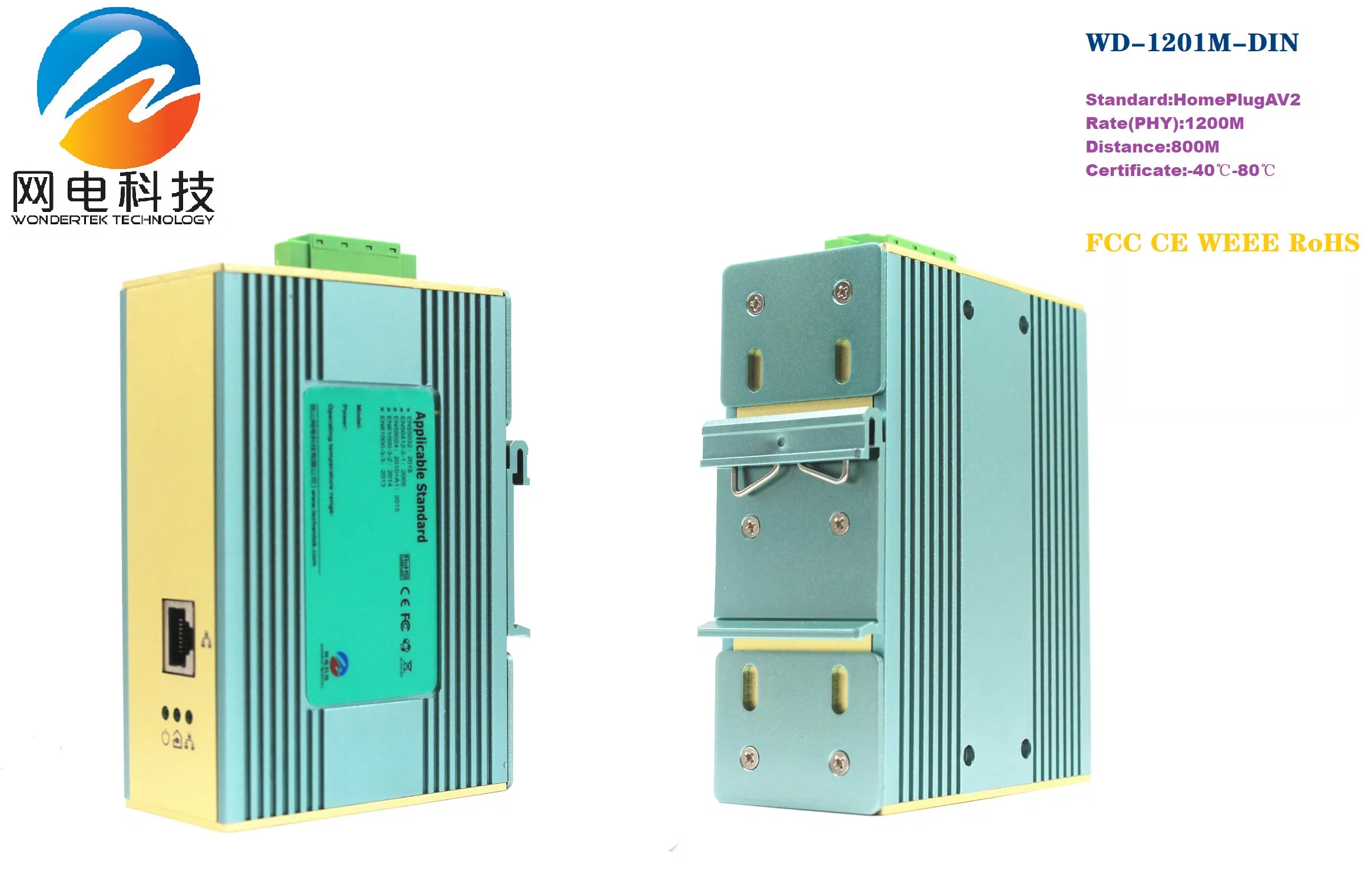

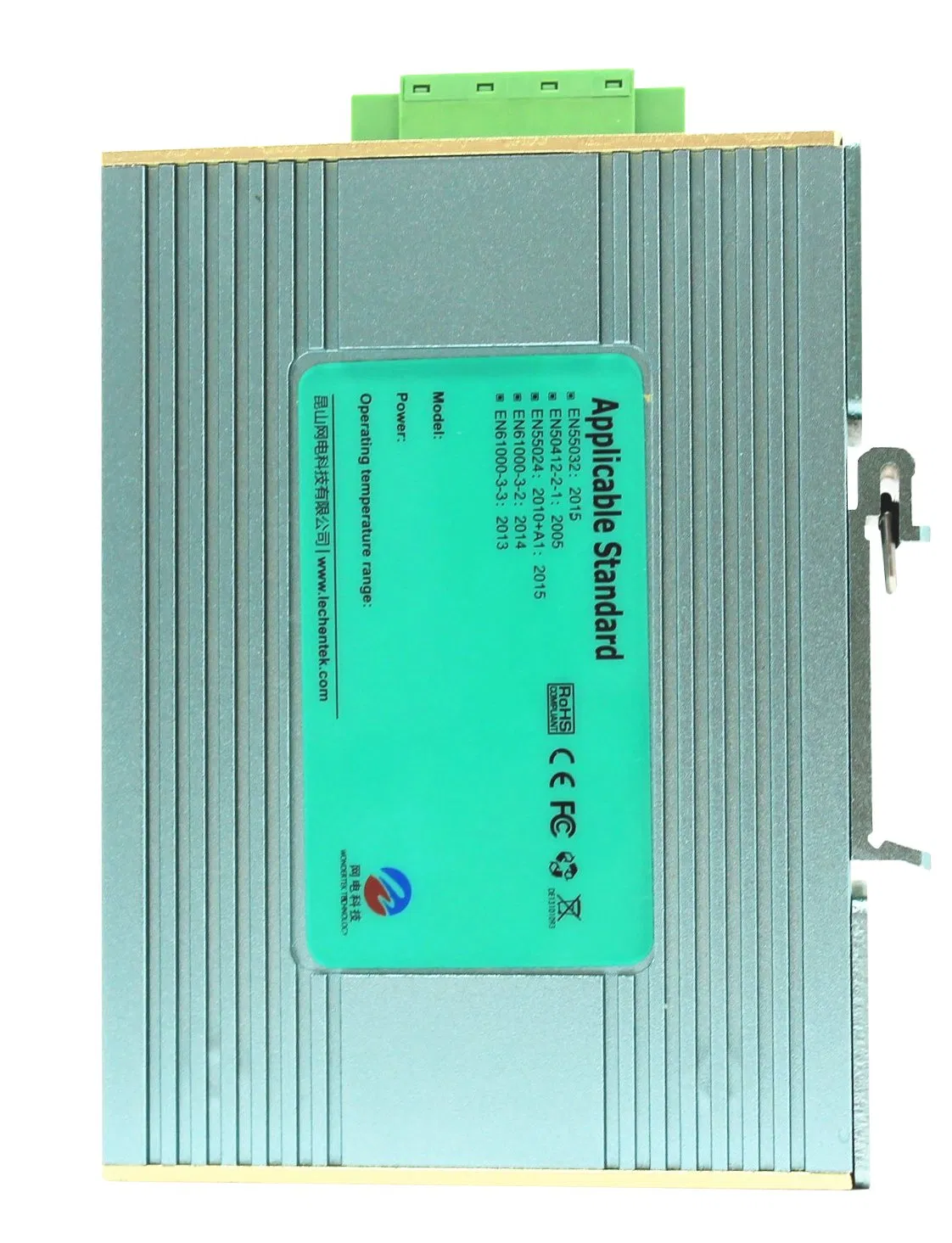

Industrial Powerline Ethernet Bridge

Model: WD-1201M-DIN(V3)

Industrial scenarios: Recommended to use with blocking Filter.

The DIN rail mounting industrial powerline ethernet bridge supports the HomeplugAV2 communication protocol standard. It is widely used in railway, mining, industrial communication, airport, subway, coal mine, intelligent storage, industrial automation control, and automatic garages.

🛠️ Technical Parameters

Feature	Specifications
Model	WD-1201M-DIN(V3)

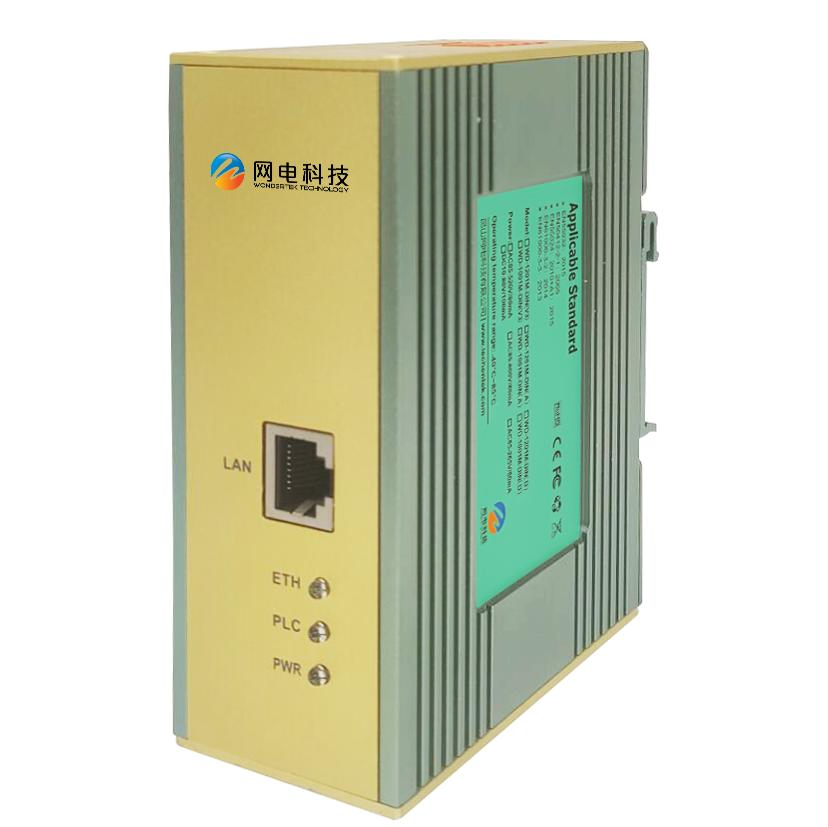

Interface	1LAN 10/100/1000Base-TX self adaption RJ45, 1AC power interface

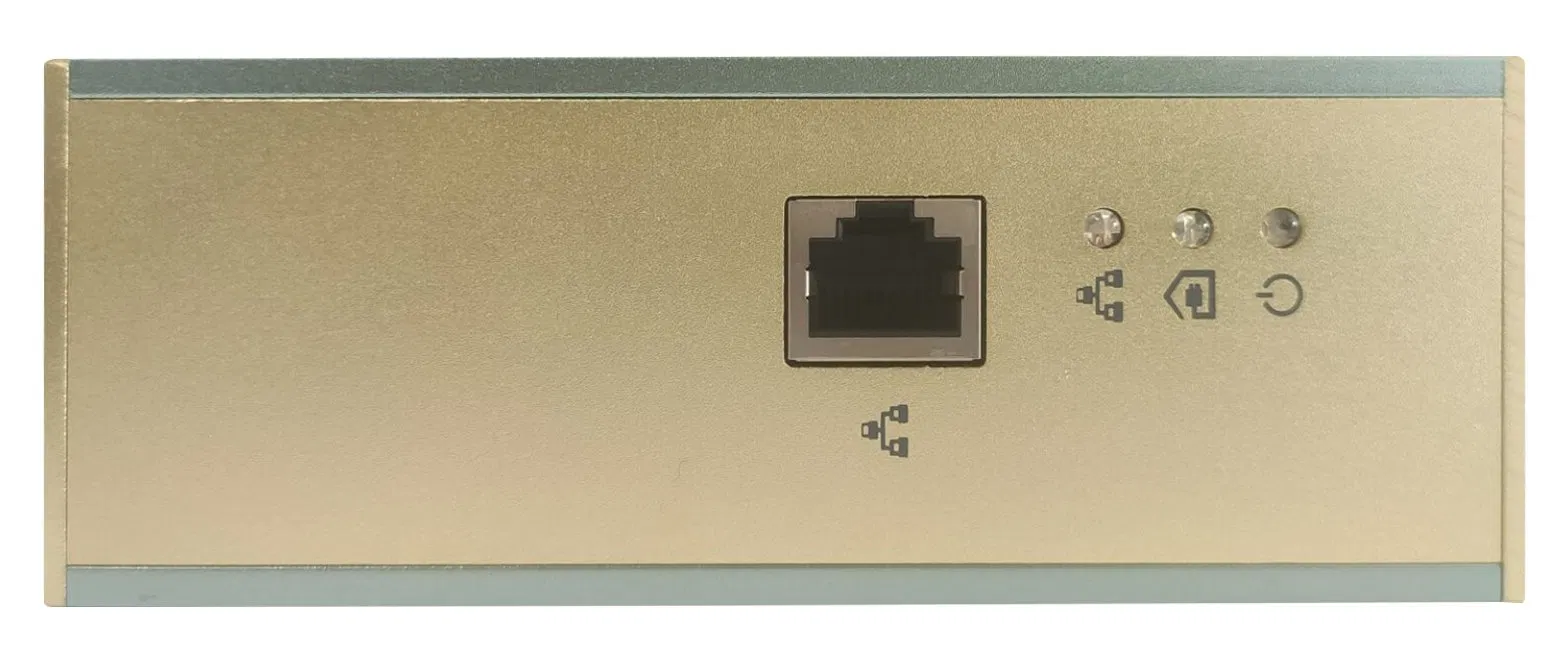

LED Display	Ethernet, PLC, Power
Transfer Frequency	2-68MHz MIMO
Protocol (PHY)	IEEE802.3, IEEE802.3x, IEEE802.3u, HomeplugAV2
Security	128-AES
Modulation	OFDM
Effective Rate	TCP/IP 500Mbps
Voltage Range	AC 90V-530V 50/60Hz / DC100-700V / 80mA
Temperature	-40ºC to 80ºC
Size	1239747(mm) (L×W×H)

⚡ Performance & Standards

Packet loss: ≤0.1% (100M, load 70%)
Support 7*24 hours all weather operation
Hardware watch dog function
PING latency: ≤20MS
ESD Immunity: ±6kV direct discharge, ±8kV air discharge
Anti-vibration: Meet MX3 demand in TB1433 (0-200Hz, 2g acceleration)

🔌 Installation & System Architecture

Power Wiring Environment:

L/DC+ Connect terminal B
N/DC- Connect terminal C
G Connect terminal A

Three-Phase Environment (L1, L2, L3):

L1 Connect terminal B, L2 Connect terminal C, L3 Connect terminal A

🛡️ PLC-Blocking Filter Reference

Model	Rated Current (A)	Leakage Current	Screw
WD302-10A-01	10A	10mA	M4
WD302-30A-01	30A	20mA	M6
WD302-65A-01	65A	30mA	M6
WD302-100A-01	100A	40mA	M8
WD302-250A-01	250A	60mA	M10

⚠️ All loads must be installed on the Filter's Load side. Do not connect them backwards.

❓ Frequently Asked Questions

Q1: What is the maximum transmission distance for this device? A: The maximum transfer distance is up to 500 meters under optimal conditions.

Q2: Does the bridge support wide temperature environments? A: Yes, it is designed for industrial use with an operating temperature range of -40ºC to 80ºC.

Q3: What communication protocol does this product use? A: It supports the HomeplugAV2 protocol standard and IEEE802.3 series.

Q4: Is the data transmission secure? A: Yes, the bridge utilizes 128-AES encryption for secure data transmission.

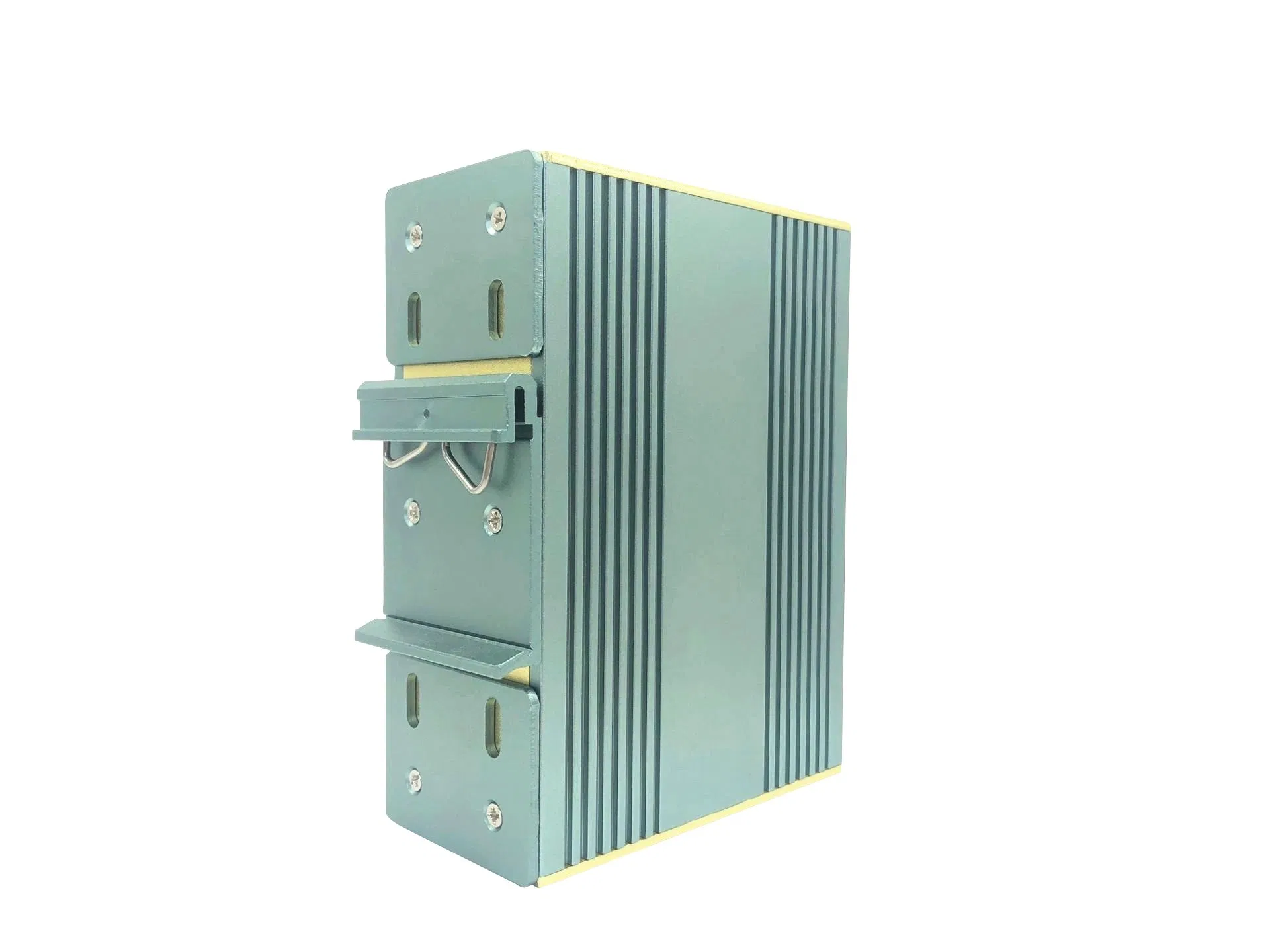

Q5: How is the device installed? A: It features an industrial DIN rail (TS35) style installation for easy mounting in control cabinets.

Q6: What are the primary applications for this Ethernet Bridge? A: It is widely used in railway, mining, industrial automation, intelligent storage, and airports.
