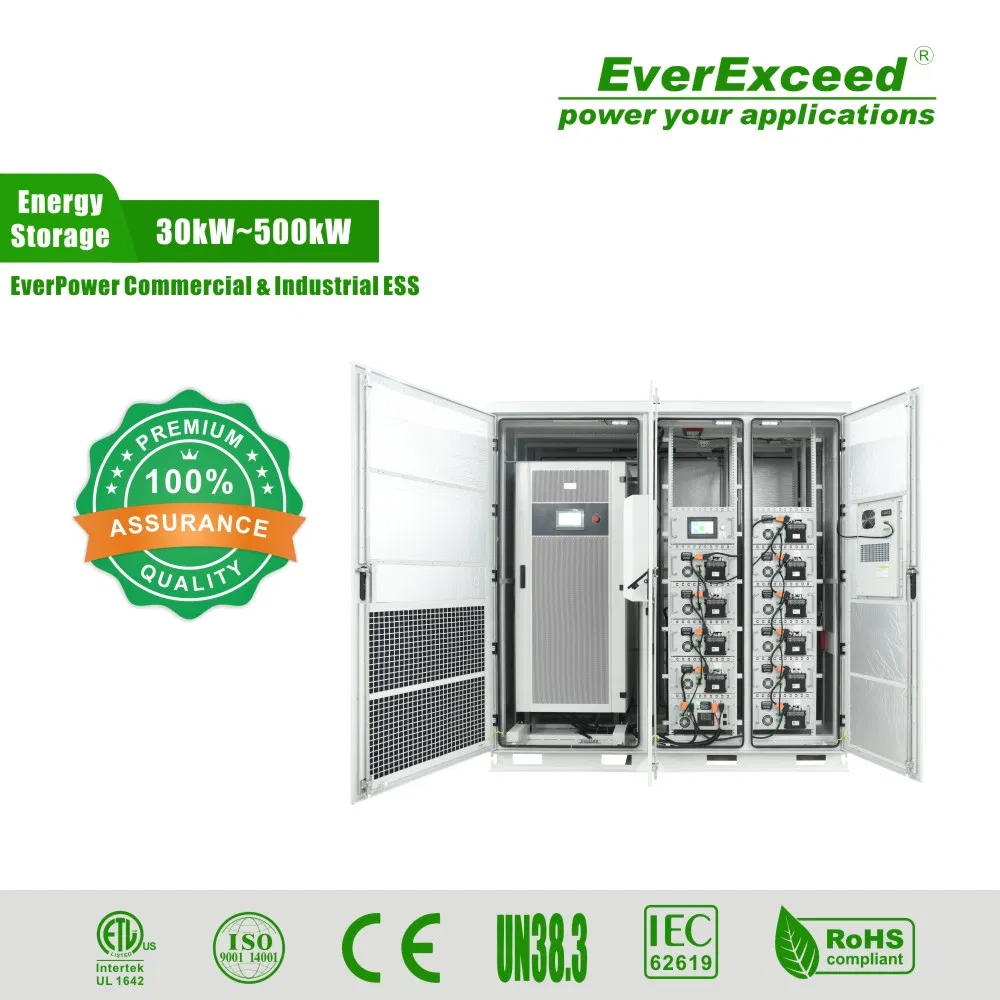

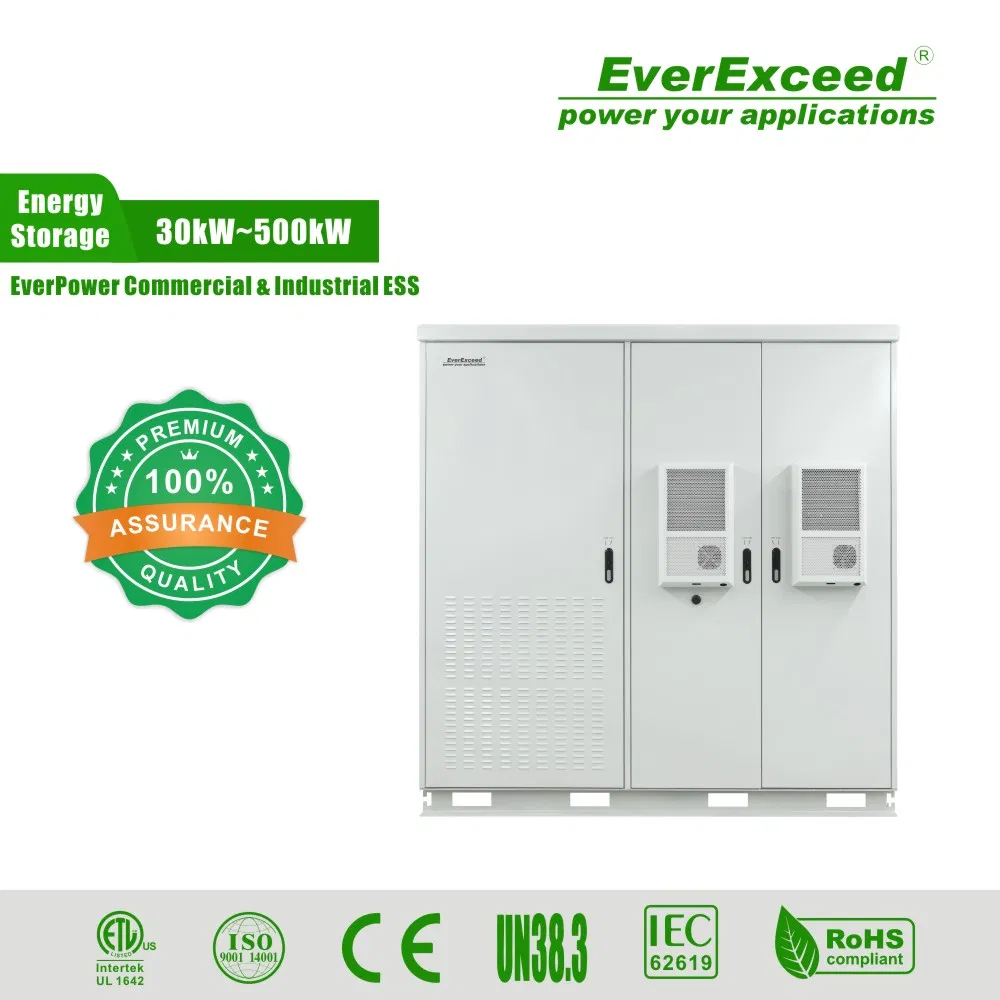

Energy Storage Solution 220VAC Everexceed Shenzhen, China Electric Power UPS Backup

1 / 2

Energy Storage Solution 220VAC Everexceed Shenzhen, China Electric Power UPS Backup

Customization:	Available
Phase:	No
Type:	Hybrid

Send Inquiry

Product Description

Basic Information

Model NO.

CO50K-100E

Protection

Over Voltage, Over Current, Short Circuit etc.

Application

Household, Office etc.

Classification

Energy Storage Solution

Output Capacity

220VAC

Battery Type

Lithium

Ingress Protection

IP21

Inverter Warranty

2 Years

Product Introduction

Commercial 50kw Energy Storage Solution provides comprehensive protection against Over Voltage, Current, and Short Circuits. This high-power backup power supply solution features power inverters ranging from 50KW to 250KW, coupled with a substantial LiFePO4 battery bank to ensure long-term backup for critical loads.

Technical Features

Wide Compatibility Compatible with lead acid & lithium-ion batteries.	Cold Start Function Supports off-grid cold start and multi-machine parallel function.	Multiple Protection Includes Overcharge, Overload, Short-circuit, and Temp protection.
Dual Power Backup AC and DC dual backup for control system stability.	Energy Consumption Intelligent temperature control with low power consumption fans.	High Efficiency Maximum efficiency reaches up to 97.5%.

Technical Specifications

Commercial & Industrial Energy Storage System Parameters:

Model	CO50K-100E	CO100K-200E	CO250K-500E
Rated AC Output	50KW	100KW	250KW
Battery Voltage	512V	512V	512V
Battery Energy	107.52kWh	215.04kWh	537.60kWh
Max Efficiency	96.50%	97.10%	97.30%
Cycle Life	≥6000 at 80%DOD
Ingress Protection	IP55

Shipping & Logistics

Payment	T/T, L/C, Cash, Western Union
Delivery	Sea/Air/Train/Truck
Packing	Carton box with wooden pallets

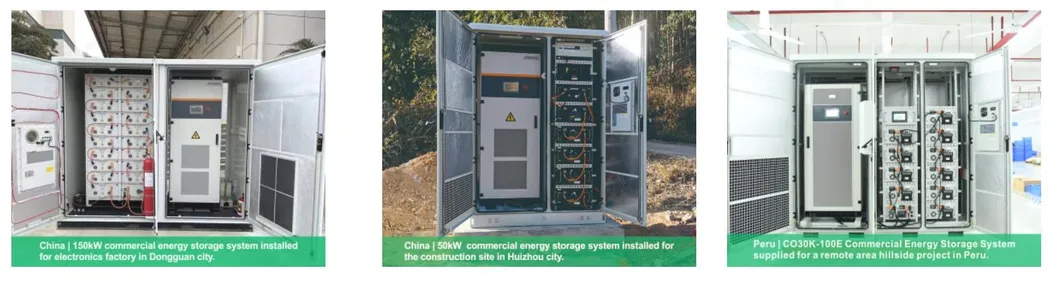

Visual Showcase & Cases

Frequently Asked Questions

What is the expected cycle life of the batteries?

The system utilizes high-quality LiFePO4 batteries with a cycle life of ≥6000 cycles at 80% Depth of Discharge (DOD).

Can this system be used with solar panels?

Yes, we offer "Solar + Energy Storage" versions (PV models) that support a maximum PV input voltage of 1000V and include integrated MPPT controllers.

What kind of protection does the system offer?

The system includes comprehensive protection against overcharge, over-discharge, overload, short-circuits, as well as high and low-temperature safeguards.

Is remote monitoring available for this energy storage solution?

Yes, the system is equipped with an EMS (Energy Management System) for remote monitoring and features an LCD touch-screen for local control.

What is the ingress protection rating?

The general system cabinet is rated at IP55, providing excellent protection against dust and water in industrial environments.
