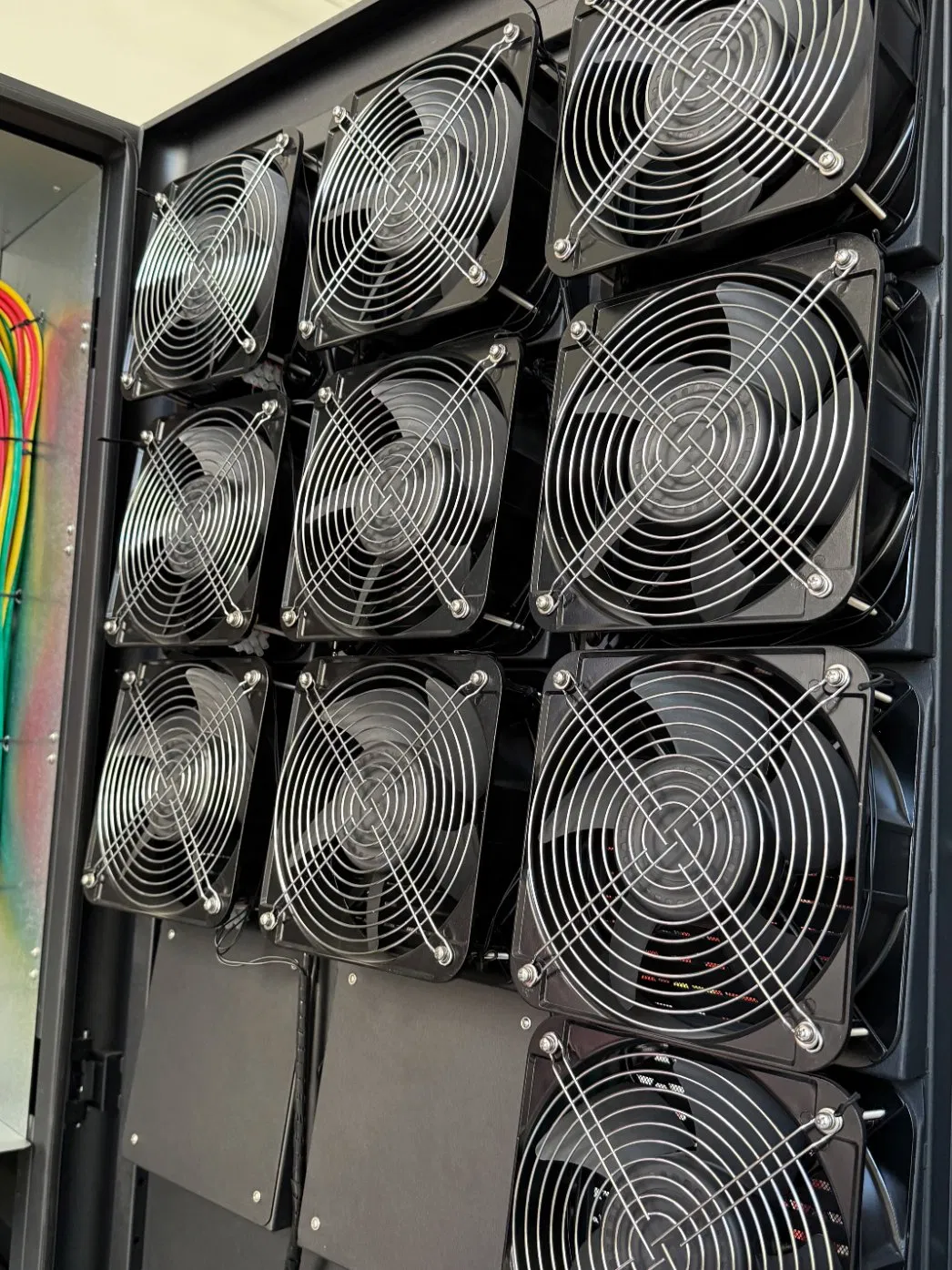

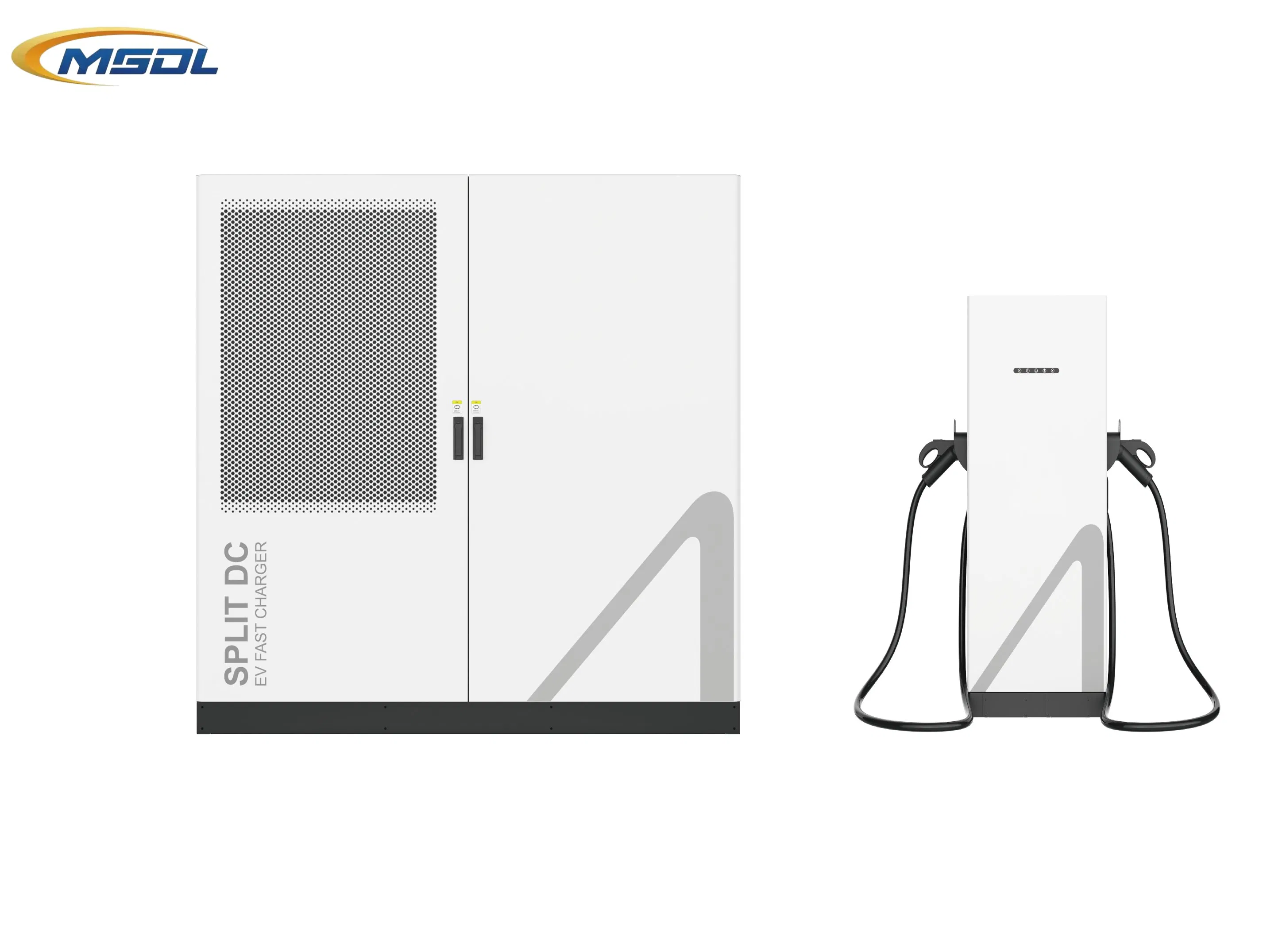

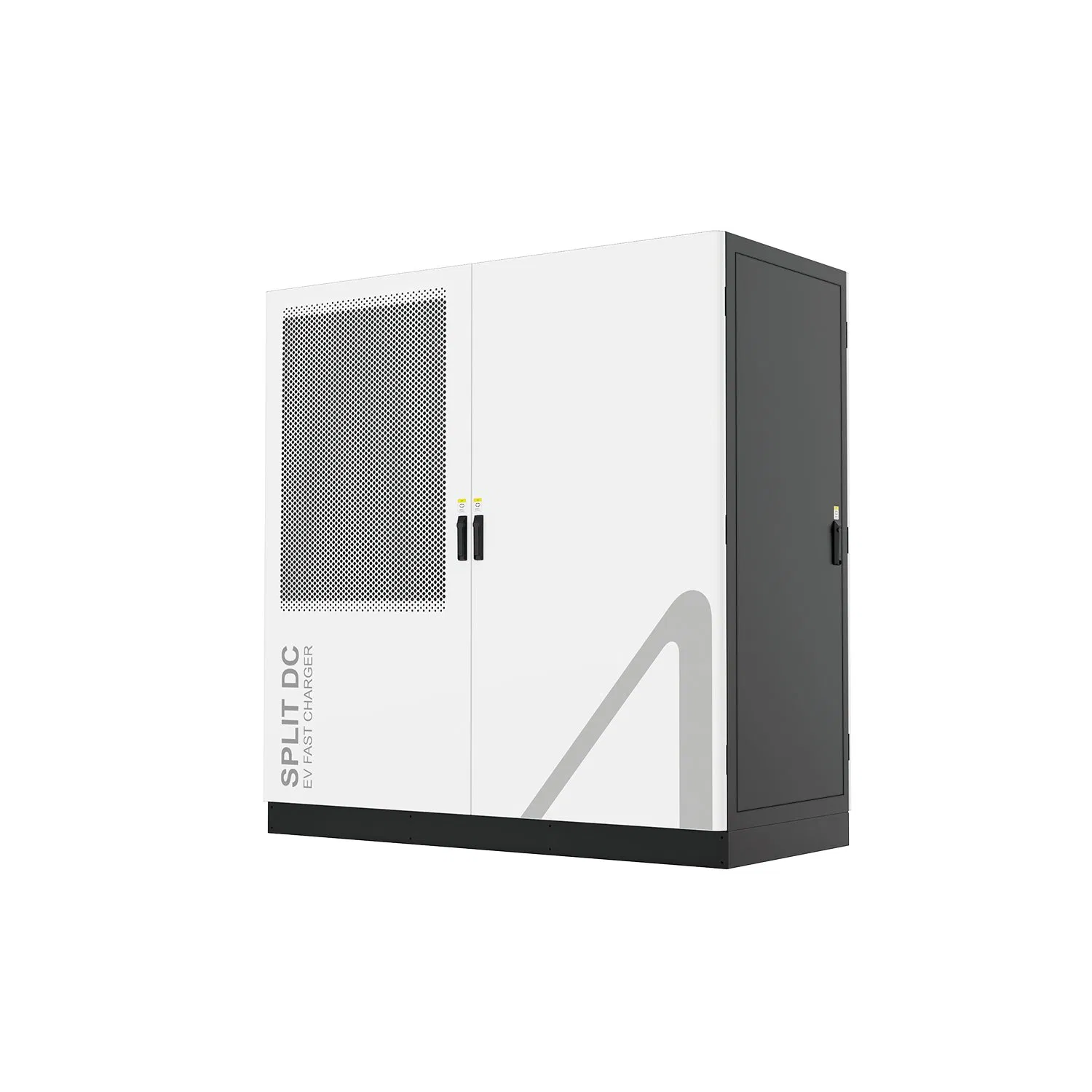

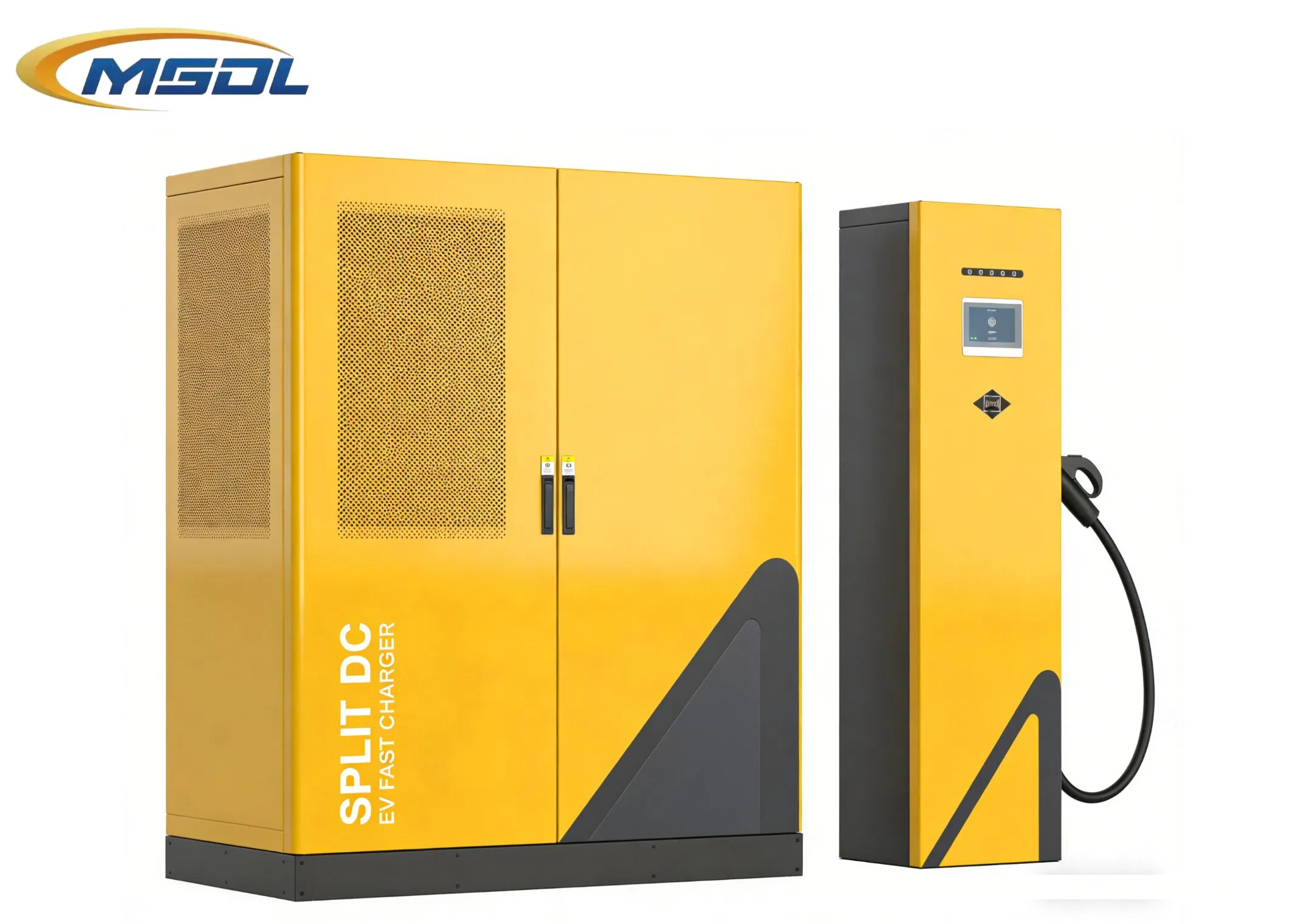

Intelligent Cooling High Speed Output Ocpp Cloud Monitoring Commercial Charging Hub

Still deciding? Get samples of $ !
Request Sample

Product Description

📊 Overview - Basic Info
Model NO.
MS08A-12
Location
Public Use
Charging Interfaces
Multiple Charges
Start Mode
RFID, Credit Card, Mobile App
Dimensions
900mm X 700mm X 1900mm
Input Voltage
400VAC / 480VAC
Output Voltage
200 - 1000VDC
Rated Power
240-480kw
Protection
IP54 IK10
Connectors
GBT, CCS2, CCS1, CHAdeMO, NACS
Product Description
Charging Hub Banner

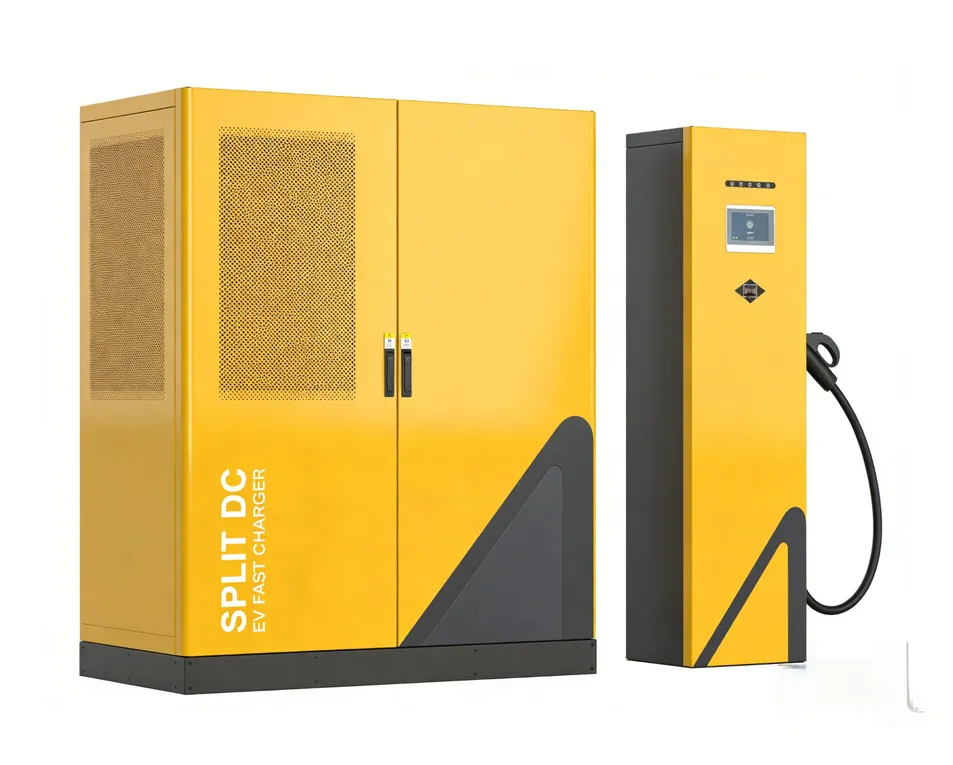

240kW-480kW High-Power Commercial/Heavy-Duty Truck Charging Station

Next-Generation Ultra-High-Performance DC Charging Station: Empowering the Future of Heavy-Duty Electrification. As the electric vehicle industry, particularly in the commercial vehicle sector, accelerates toward electrification, the demand for efficient, reliable, and high-power charging infrastructure grows increasingly urgent.

This station adopts a forward-thinking modular design with 12 high-efficiency power module slots, smoothly expanding up to an impressive 480kW. Its rugged industrial style ensures durability in complex environments like mines, ports, and highway supply stations.

⚙️ Technical Specification
Appearance Dimensions 900mm x 700mm x 1900mm
Weight 440kg
Cable Length 5m-7m
Connectors GBT, CCS2, CCS1, CHAdeMO, NACS
Electrical Output Voltage 200 - 1000VDC
Rated Power 240-480kW
Efficiency Peak efficiency ≥ 96%
Protocol OCPP 1.6J / 2.0.1
Environment Operating Temp -30°C to 75°C
Protection IP54 || IK10
Frequently Asked Questions
What is the warranty period for this charging station?
We provide a 12-60 months warranty. During this period, we supply technical support and replacement parts free of charge.
What is the peak efficiency of the charger?
The station achieves a peak efficiency of ≥96% with a power factor greater than 0.99.
Does the product undergo testing before delivery?
Yes, we conduct 100% testing on all goods before delivery to ensure performance and safety.
What kind of safety protections are included?
It includes overvoltage, lightning, overcurrent, leakage, and waterproof protection, plus an emergency stop button.
What is the difference between this and a Wallbox?
Wallboxes are typically for fixed lower-power use, while this high-power station is designed for commercial heavy-duty trucks and rapid public charging.
What are the supported payment and start modes?
It supports RFID cards, credit card payments (POS optional), and mobile remote operation via App.
