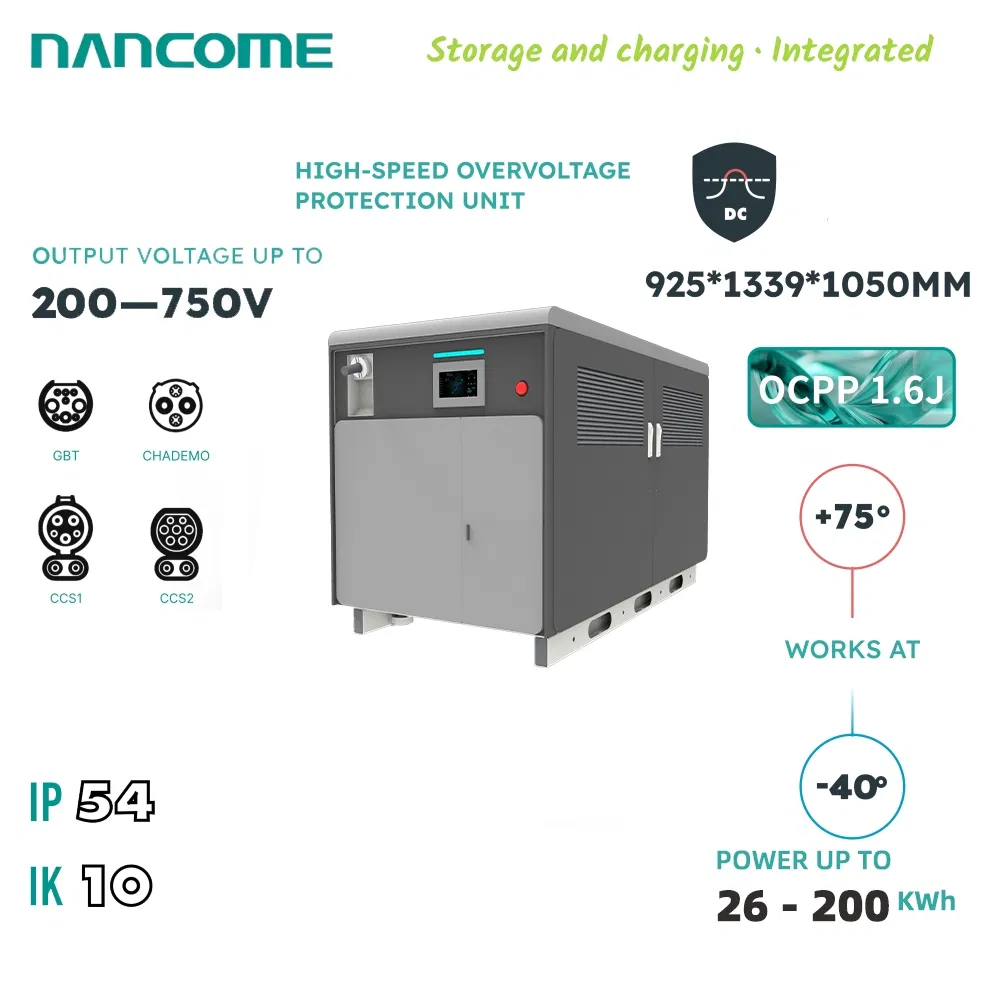

Nancome 141kwh All-in-One Energy Storage EV Fast Charging Station

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
NCBCS01
Location
Public Use
Storage Energy
26-200kwh LiFePO4
Output Power
20kw-180kw Constant Power
Output Voltage
DC200V-1000V
Output Current
0-250A
IP Grade
IP54
Warranty
24 Months
Working Temp
-10°C~+60°C
Screen Display
7/10 Inch Display
⚙️ Product Parameters
Charge Mode
by Hand/Ocpp
Charging Gun
GB/T, CCS1, CCS2, Chademo Optional
Charge Method
AC 220V/AC 380V
Weight
160kg-2600kg
Cable Length
7 Meter
Start Mode
RFID, Credit Card, Mobile App

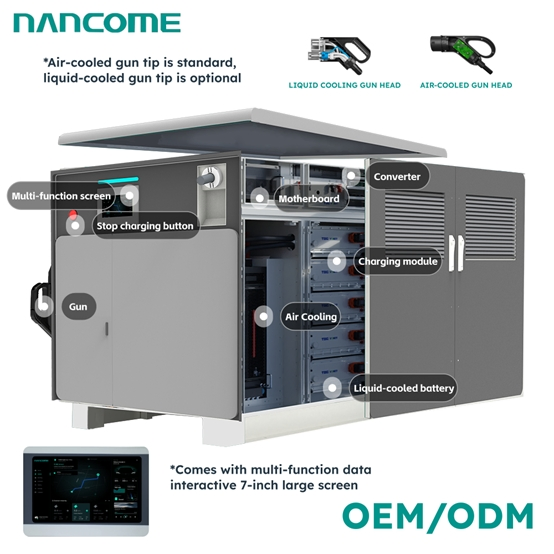

📸 Product Visuals & Details

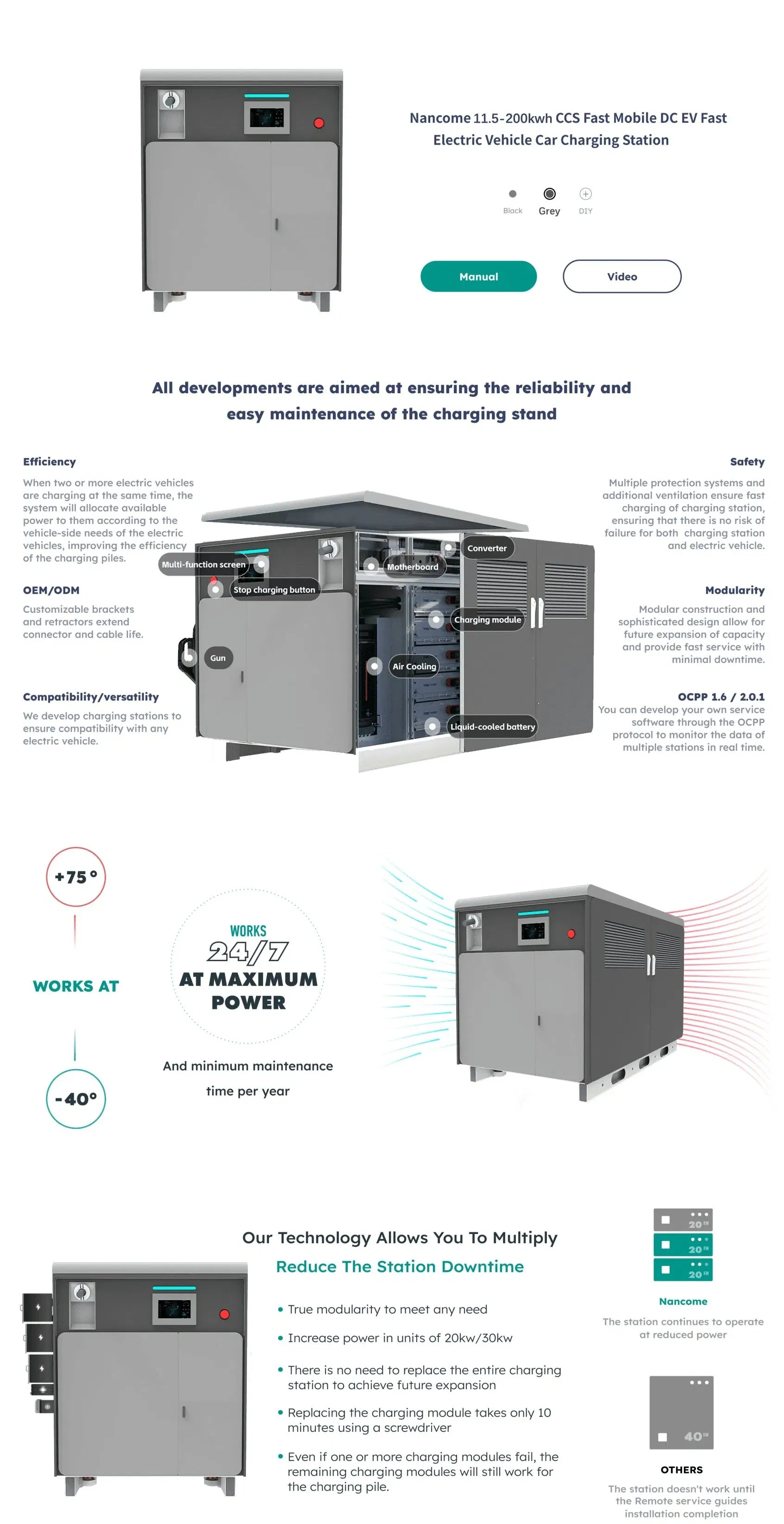

📐 Technical Specifications
Frequently Asked Questions
What types of vehicles are compatible with your charging interfaces?
Our stations are compatible with CCS1, CCS2, GB/T, and CHAdeMO standards, supporting the vast majority of mainstream electric vehicles worldwide.
Can the system operate in extreme weather conditions?
Yes, our devices are tested for temperatures ranging from -20°C to 55°C and hold up to IP65 protection ratings, making them suitable for heat, cold, dust, and high humidity.
Does the energy storage system help with operating costs?
Absolutely. The system supports peak-shaving and valley-filling strategies, allowing you to store energy when rates are low and use it during peak pricing, significantly optimizing your return on investment.
What is the expected service life of the system?
The overall system lifespan is 8–10 years. The storage batteries are designed for over 3,000 cycles, ensuring long-term reliability with minimal maintenance.
Can the system be monitored remotely?
Yes, we provide a cloud-based platform that supports real-time monitoring, remote diagnostics, and instant alerts to ensure continuous operation.
Is professional installation required for these units?

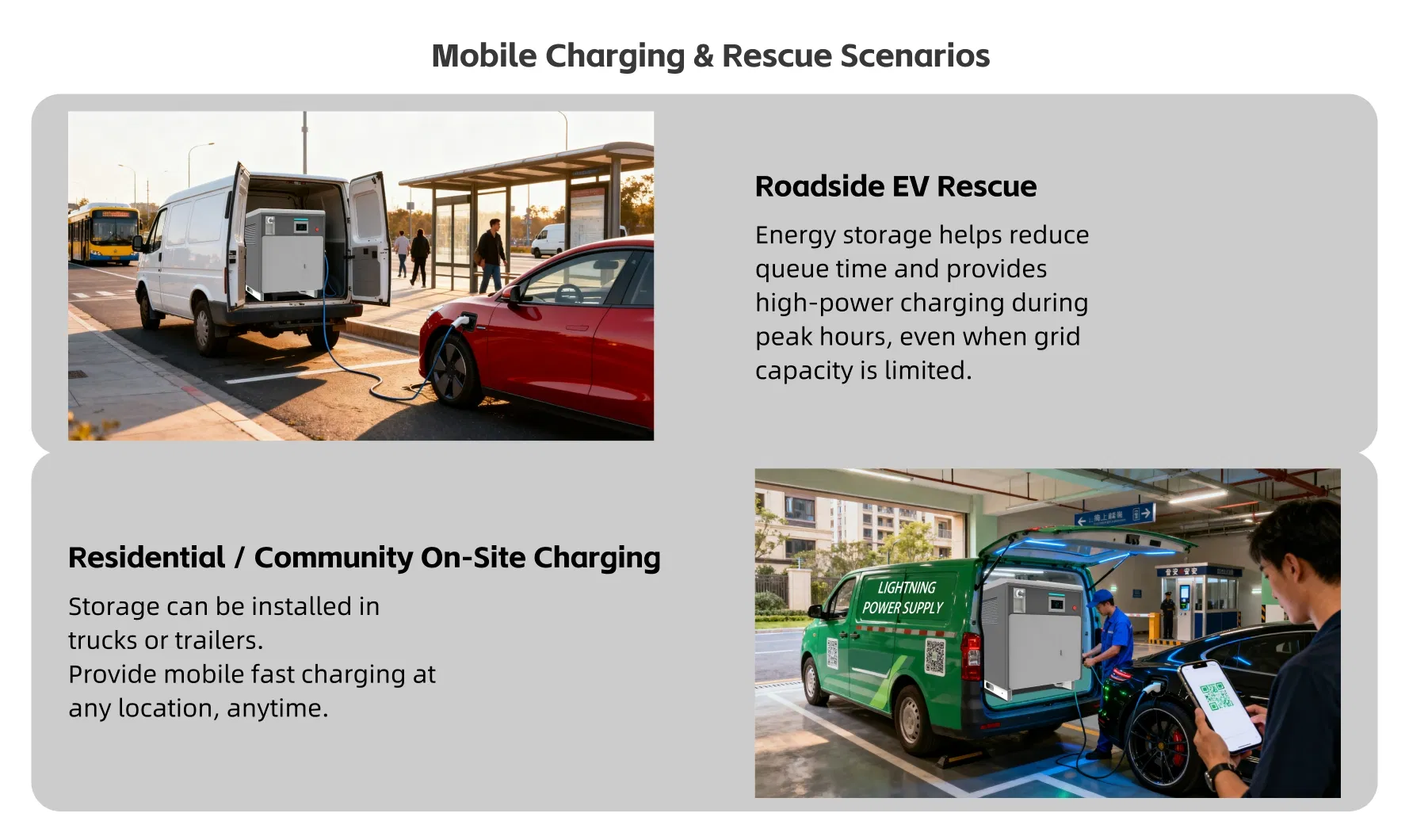

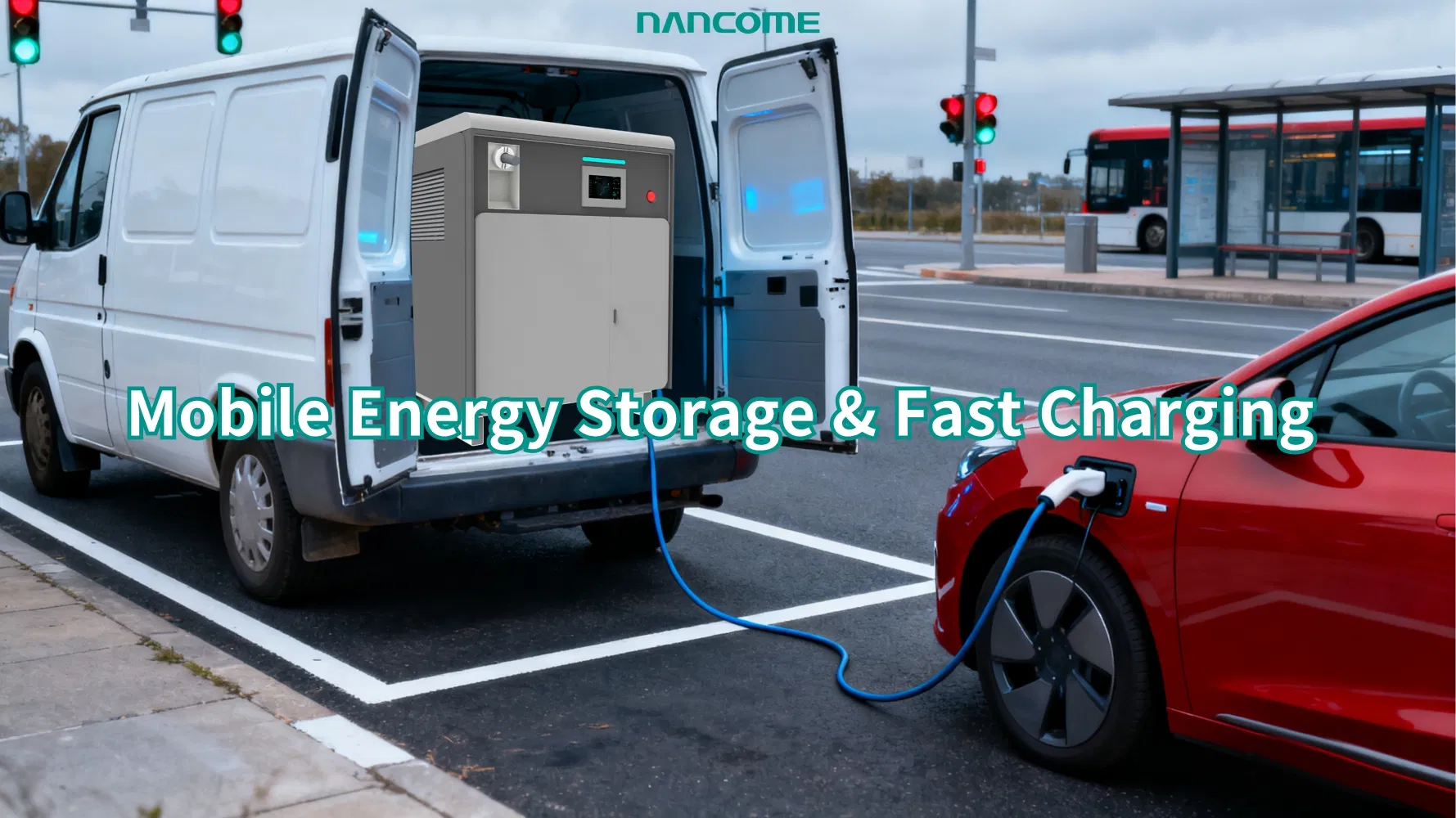

While floor-mounted chargers require basic wiring and grid connection, our mobile energy storage units are designed for plug-and-play use with no major civil work required.
