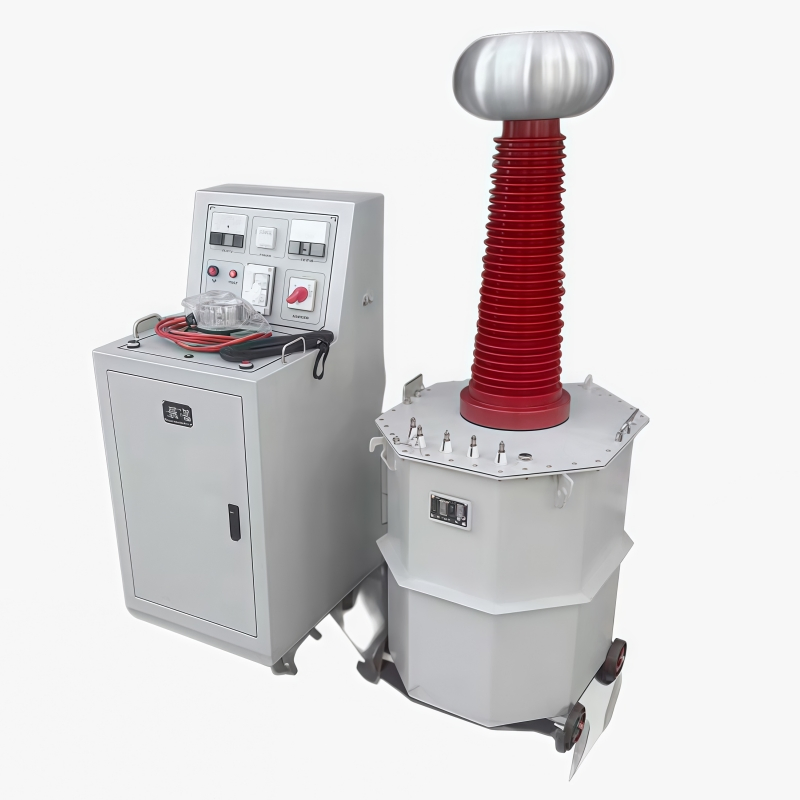

Oil-Immersed AC Hipot Cable Tester with Test Transformer

After-sales Service:	All Series
Warranty:	1 Year
Connectors:	Ethernet Cat 6

Basic Information

Model NO.

test system

Test Mode

All Series

Usage

Network Cable Tester

Test Region

Forming Cable

Cable Type

Forming Cable

Certification

CE

Product Type

AC Hipot Cable Tester

Origin

China

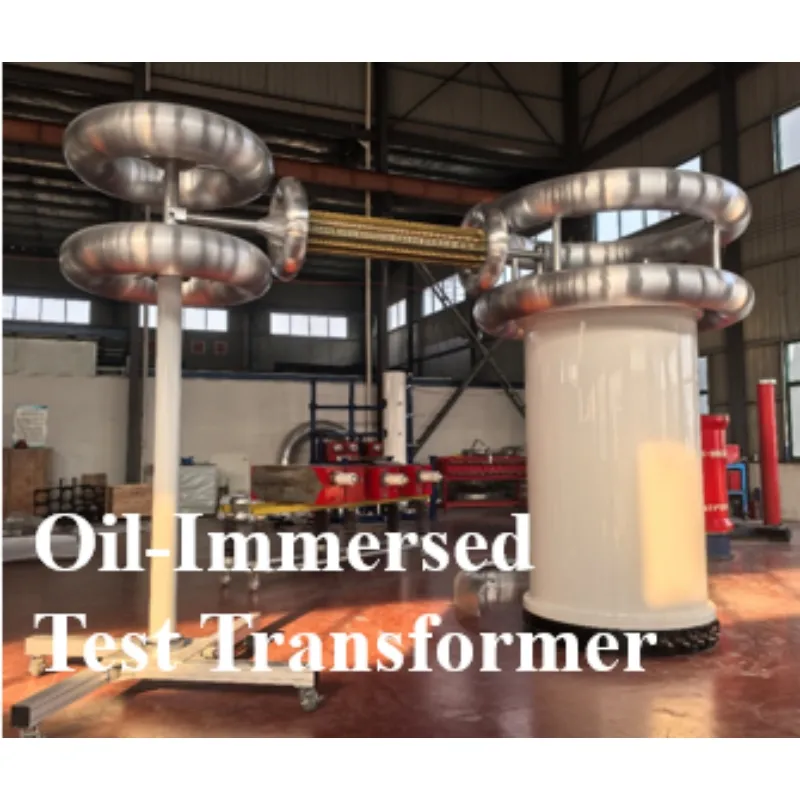

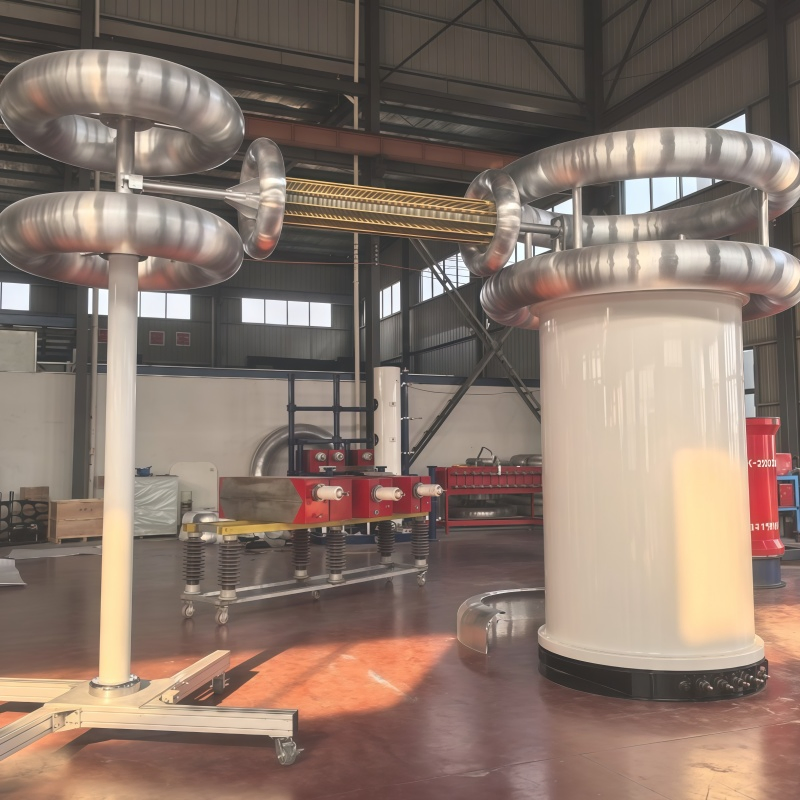

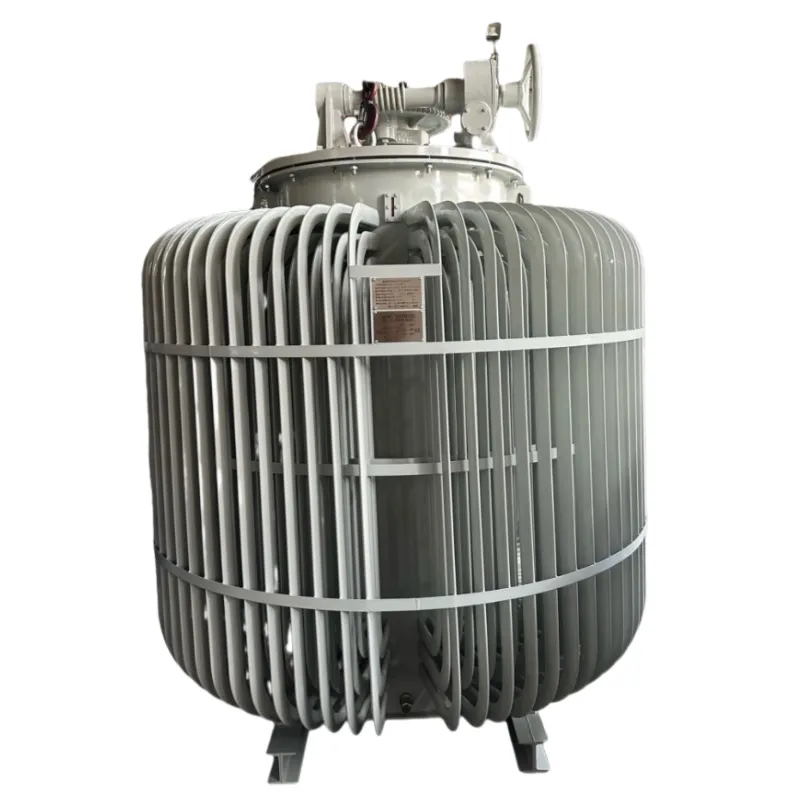

Oil-Immersed Test Transformer

The Oil-Immersed Power Frequency Transformer is Suitable for AC withstand testing of 110 kV cables, transformers, GIS, and generators. It provides high output capacity and voltage, and its detuning protection ensures the voltage drops rapidly during breakdown, preventing damage to the system.

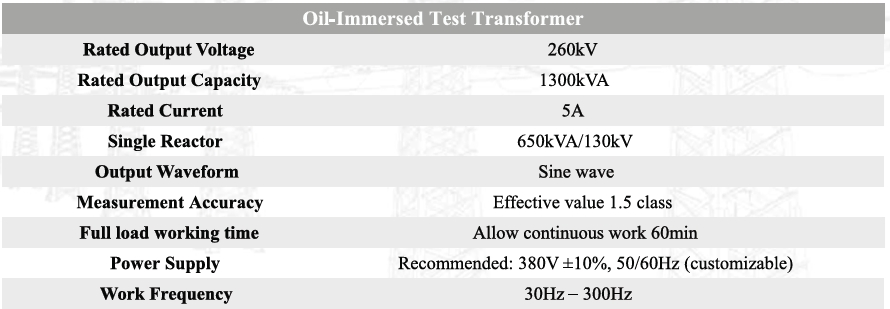

Technical Specifications

Oil-Immersed Power Frequency Transformer Parameters
Rated Output Voltage	260KV
Rated Output Capacity	1300KVA
Rated Current	5A
Single Reactor	650KVA/130KV
Output Waveform	Sine wave
Work Frequency	30Hz – 300Hz
Power Supply	380V ±10%, 50/60Hz (customizable)

Main Functions:

✔ Generation and application of high AC voltage

✔ Applied voltage withstand testing for transformers

✔ Real-time measurement of voltage and current

✔ Automatic control, timing, and protection

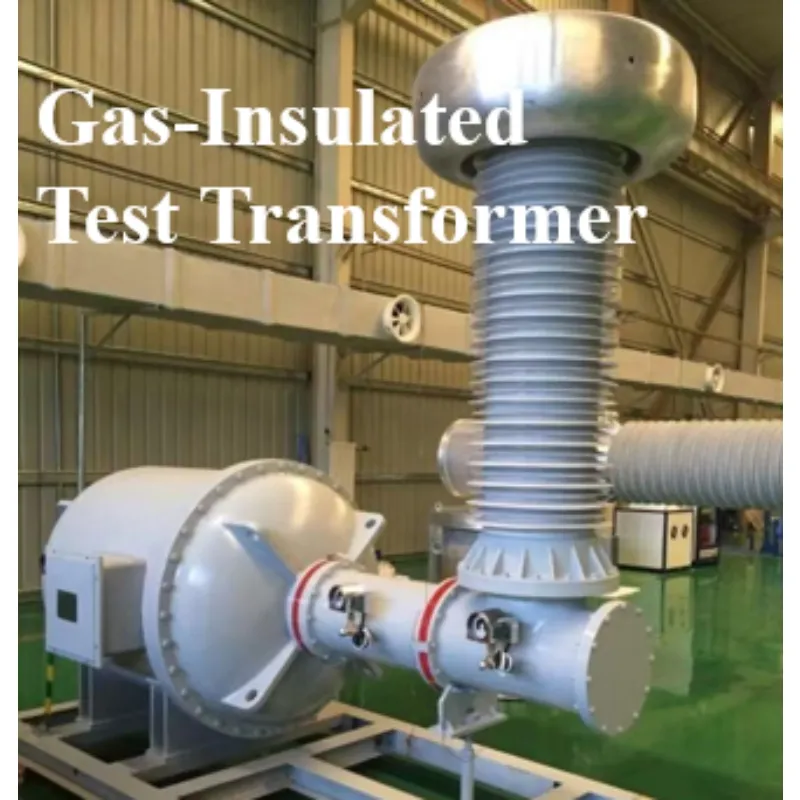

System Configuration:

• Front switchgear / Voltage regulation unit

• Power-frequency test transformer

• Filter & compensation reactor

• Damping device / Capacitive voltage divider

• PLC control & measurement system

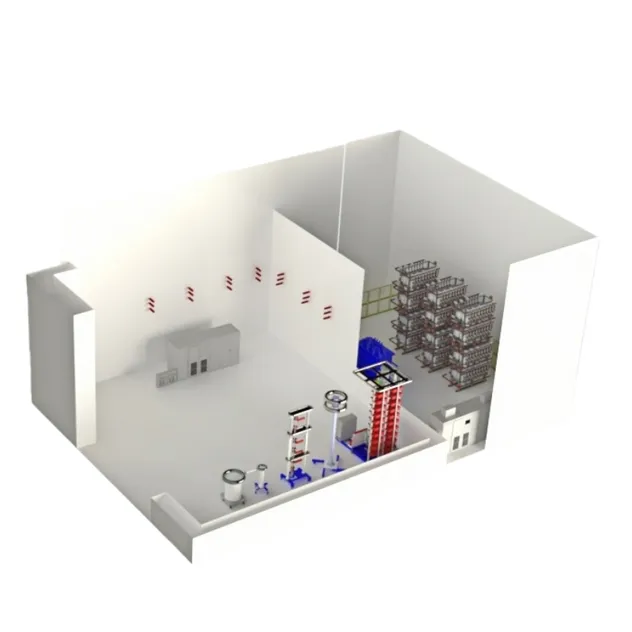

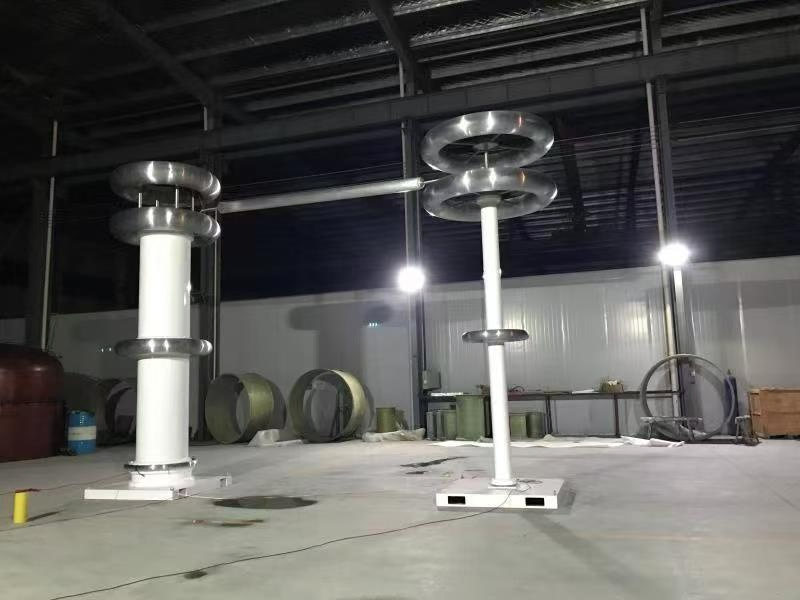

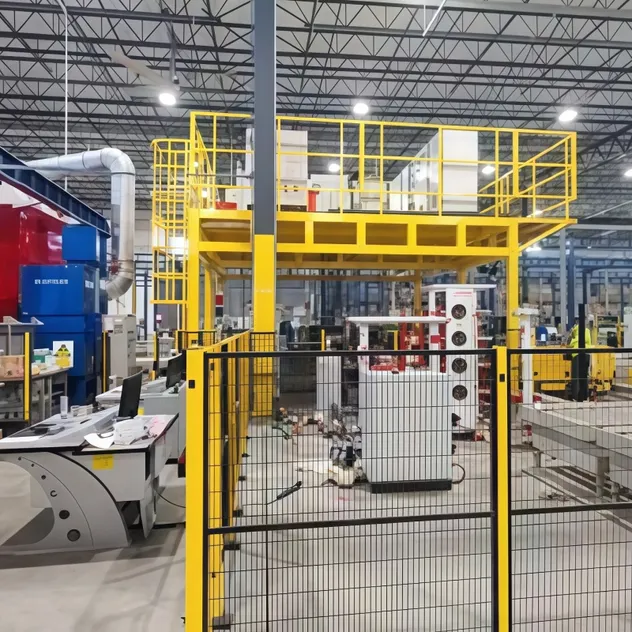

System Setup & Application

Our Vision & Mission

Our Mission

To drive progress in high-voltage testing through innovation, safeguard energy security with precision and reliability.

Our Vision

To lead the revolution in high-voltage testing with innovative technologies, safeguarding global energy security.

Frequently Asked Questions

1. How is the product quality and price?

We are the manufacturer, which allows us to guarantee high quality alongside preferential pricing for our customers.

2. How soon can I receive a price quote?

We usually provide a quote within 6 hours of receiving an inquiry. For urgent requests, please highlight your priority.

3. What are the delivery terms and lead times?

We offer EXW, FOB, CFR, and CIF. Production lead time depends on quantity, but normal items are processed within 3 working days.

4. What support is available for technical difficulties?

We provide operation manuals and videos. Remote video call training is available, and engineers can provide on-site service if necessary.

5. How is the equipment packed for shipping?

All equipment uses standard export packing. We have a track record of zero damage during transit, ensuring your goods arrive safely.

6. Do you provide door-to-door delivery?

Yes, for most customers we provide door-to-door service where you only need to handle import clearance and tariffs.
