PCB Assembly Solutions with Electronics Boards for Power Inverter Board Price

Basic Information

Model NO.

PCB25101501

Layers

Multilayer (1-48 Layers)

Base Material

FR-4 (Tg135-Tg250)

Certification

RoHS, CCC, ISO, UL, IATF16949

Board Thickness

0.2-6.0 mm

Copper Thickness

0.5-12 Oz

Surface Finishing

LF HAL, OSP, ENIG, ENEPIG, Immersion Silver

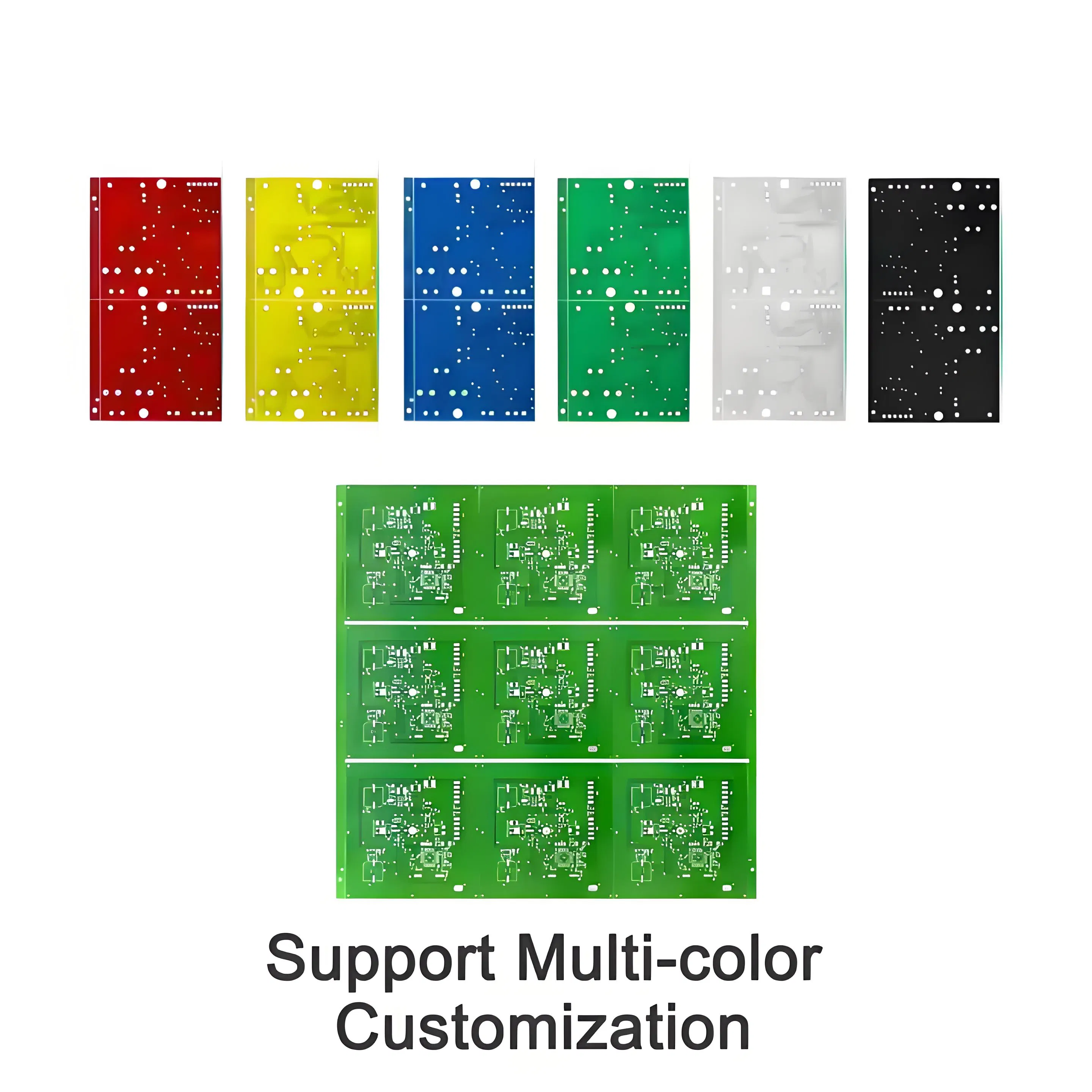

Solder Resist

Green, Blue, Red, Yellow, Black, White, Orange

Max Board Size

900 X 600 mm

Min Hole Size

0.15 mm

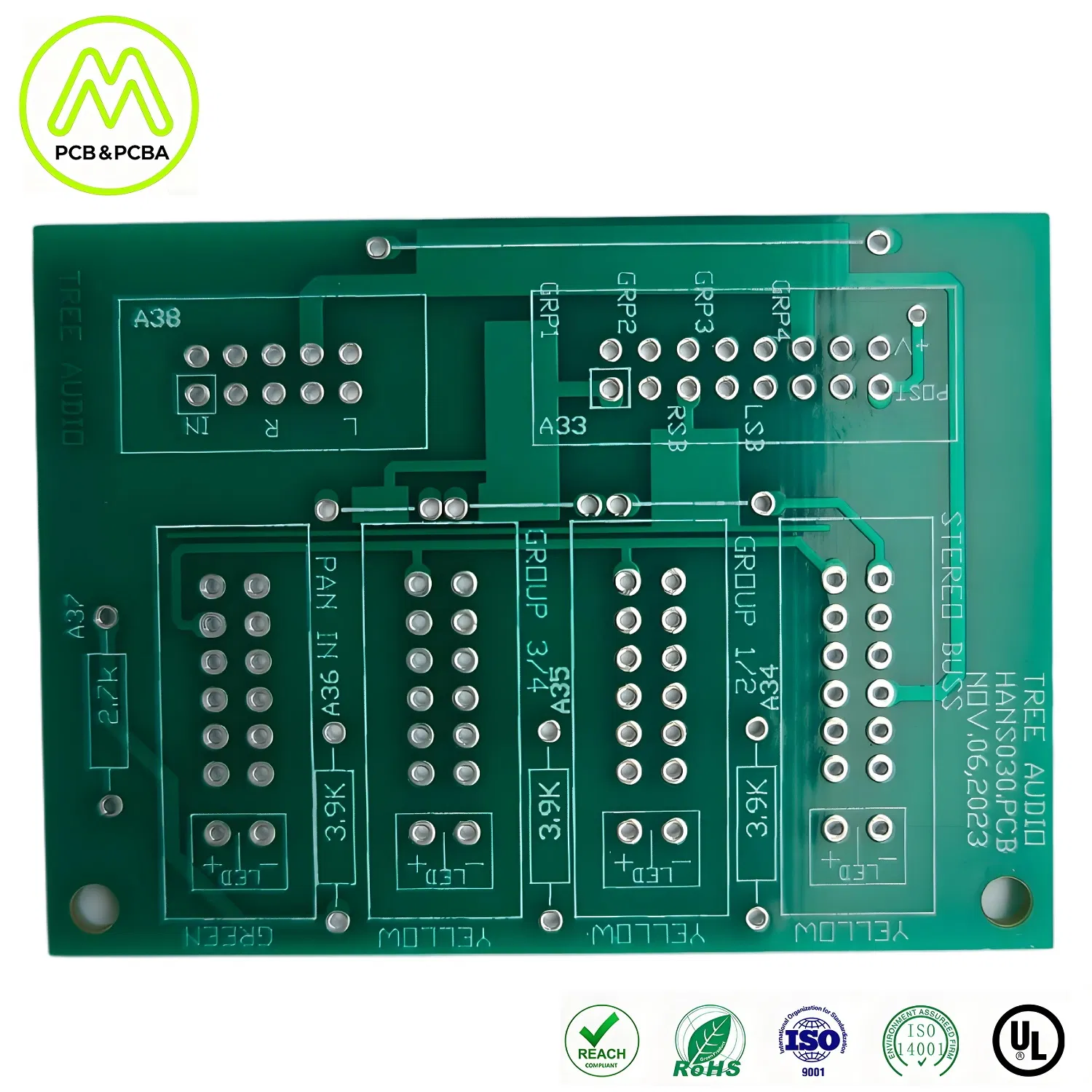

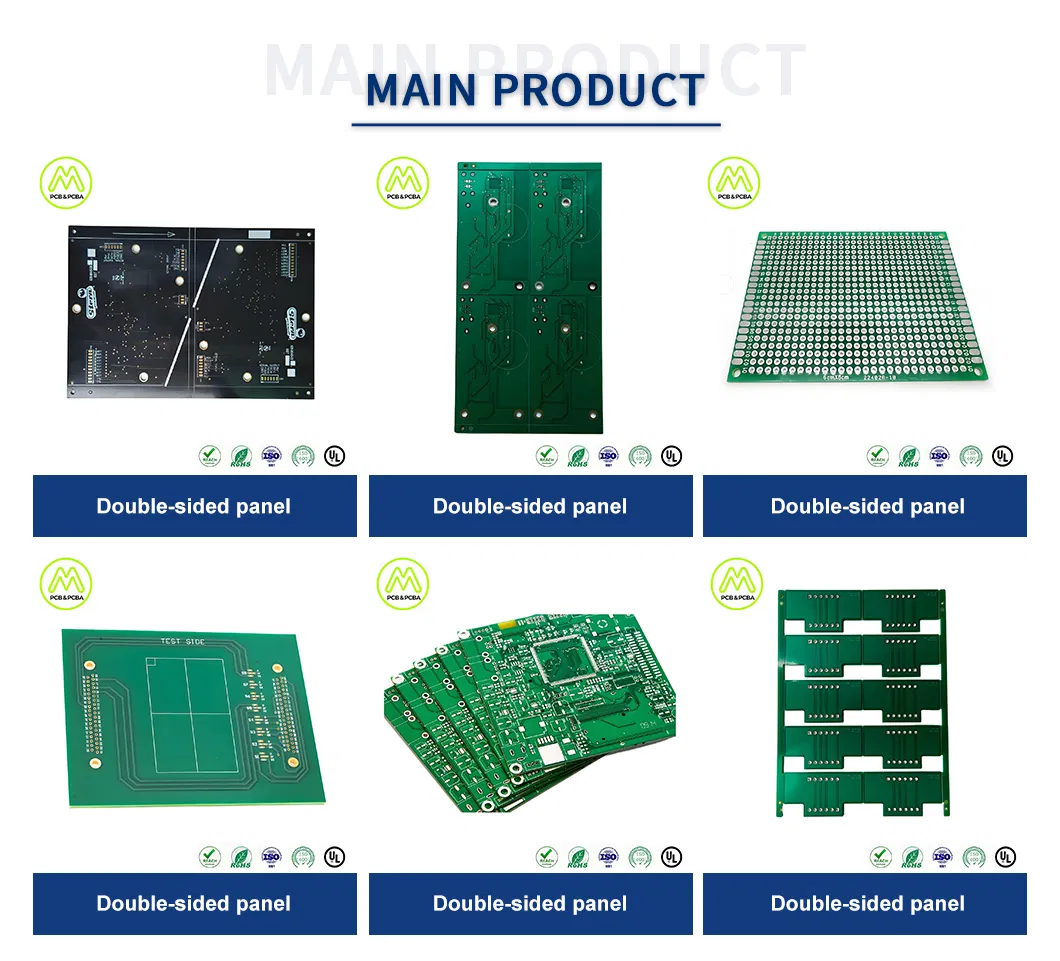

Product Description: Double-sided Panel

Double-sided panels are widely used in electronic devices with limited space but complex functionality. Our double-sided PCBs integrate precision etching, via metallization, and solder mask screen printing processes, supporting mixed SMT and through-hole assembly. They maximize board space utilization and enhance circuit integration, making them suitable for diverse applications such as power modules, control motherboards, and communication equipment.

Technical Specification

Product Name	Double-sided panel
Service	PCB + PCBA + Components + Reverse Engineer
Application	Power And Energy, Medical Equipment, Automotive Electronics, Aviation
Package Size	16.00cm * 10.00cm * 10.00cm

Manufacturing Capabilities

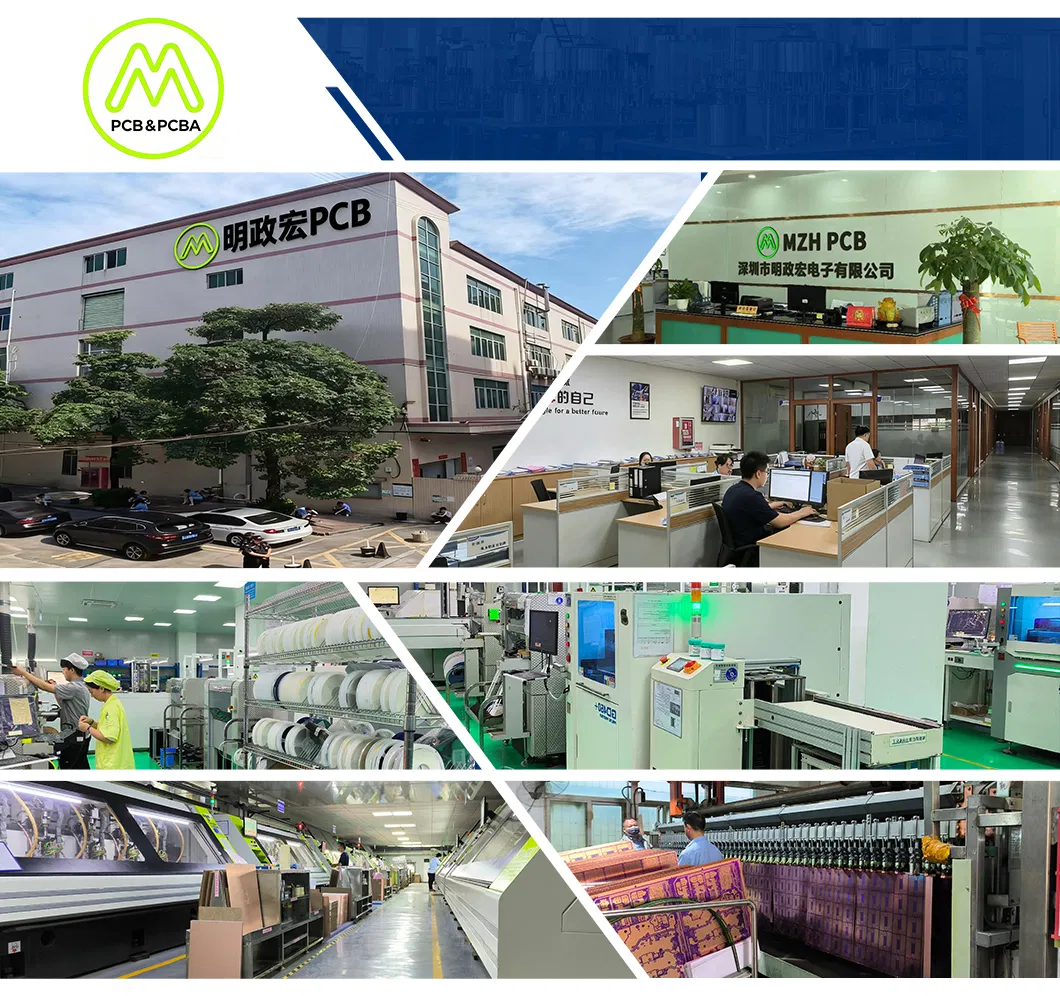

We provide a one-stop hardware solution including PCB fabrication (Rigid up to 40 layers, FPC, HDI, Rigid-Flex, and High-frequency boards), PCBA assembly, and component sourcing. With 10 fully automatic SMT production lines and advanced testing such as AOI, X-ray, and functional tests, we support high-quality, high-mix low-volume, and fast turnaround requirements for industries including communications, industrial control, and medical equipment.
