Models

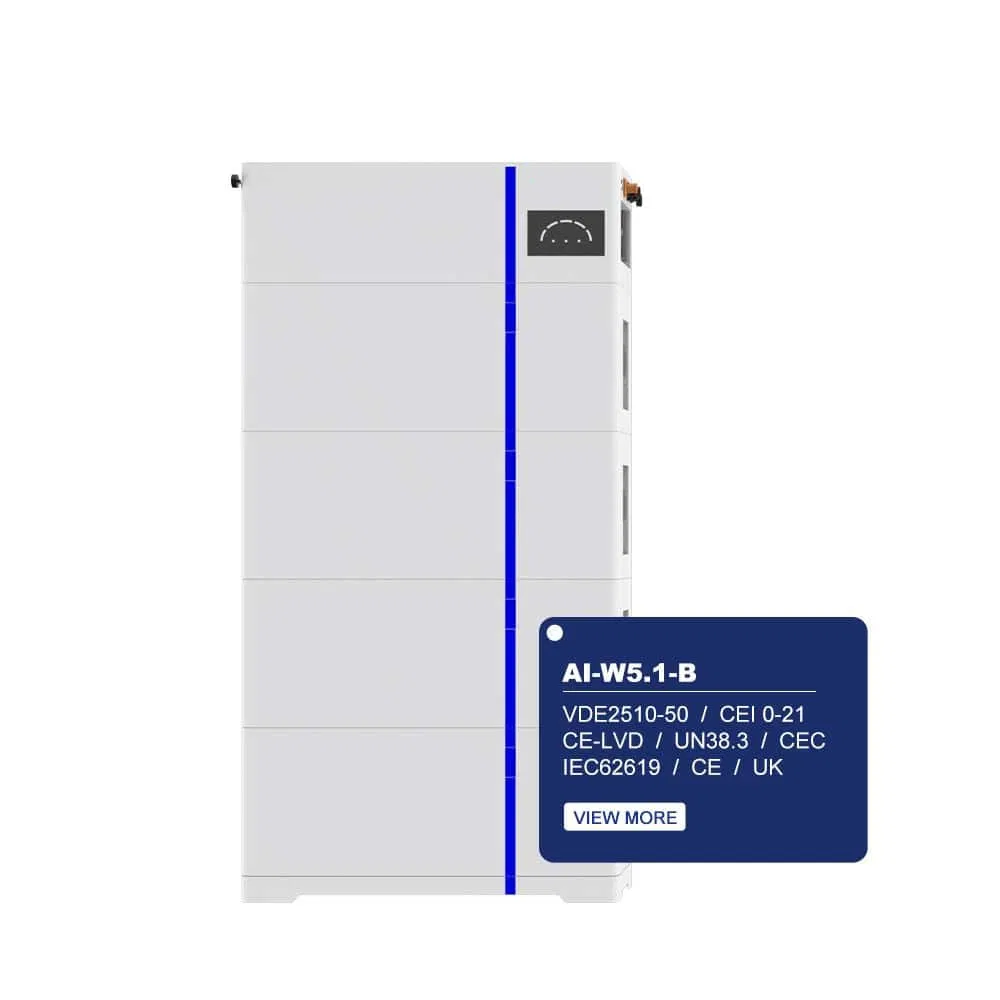

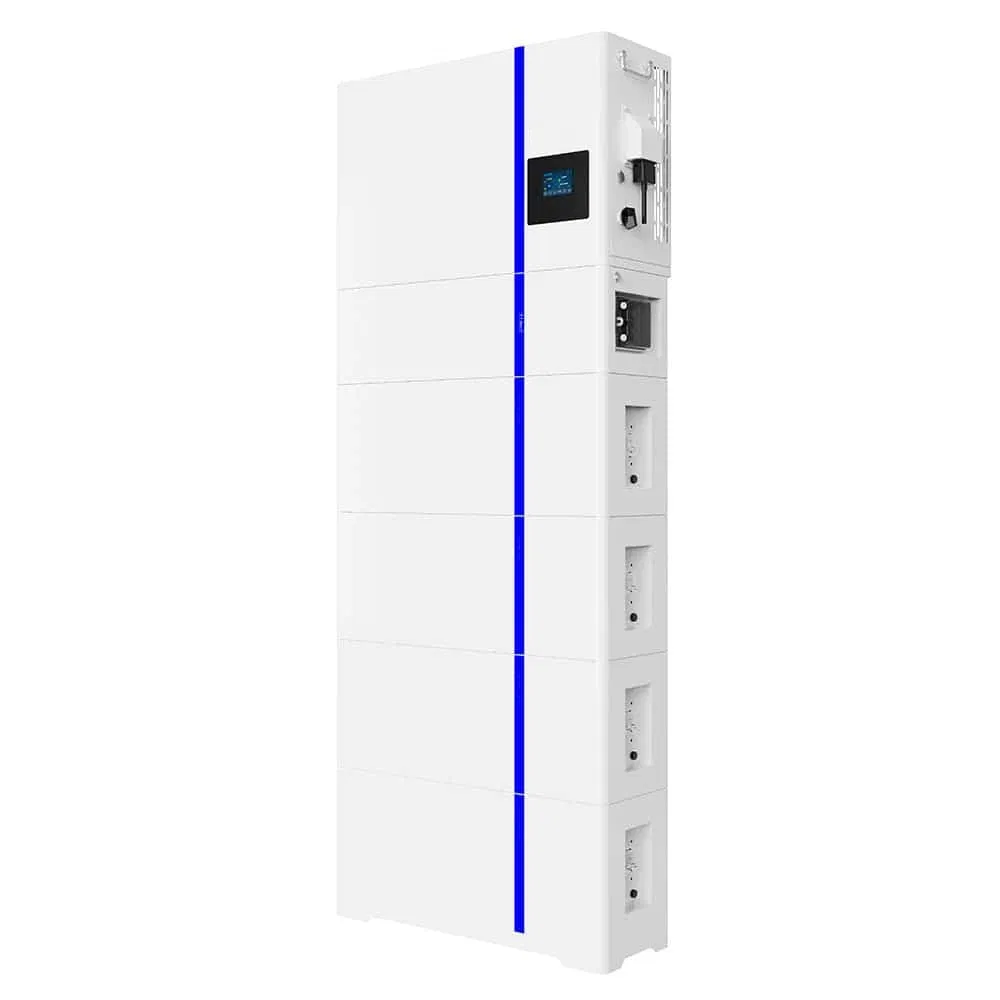

Al-W5.1-B-ESS All-in-One
Nominal Output Power / UPS Power (W)
From 3600 / 3600 to 12000 / 12000
AC Output Frequency and Voltage
50 / 60Hz; L / N / PE 220 / 230Vac (Three-phase: 380 / 400Vac)
Grid Type
Single Phase (P1) or Three Phase (P3)
Recommended Energy Configuration
Single-phase: Minimum 5kWh; Three-phase: Minimum 10kWh; Max: 15kWh
Max. Charging / Discharging Current (A)
Ranges from 90A to 240A depending on model
Battery Operating Voltage (V)
44.8 - 57.6 V
Battery Chemistry
LiFePO4
IP Rating of Enclosure
IP65 (after stacking)
System Certification
IEC62619, IEC60730, CE, VDE2510-50, CEI 0-21
Warranty
10 years
?
Frequently Asked Questions
Q1: Do the energy systems comply with international electrical and safety standards?
A1: Yes. All systems meet relevant IEC/CE/UN38.3 safety and EMC standards. Components undergo extensive testing for electrical protection, fire safety, and environmental durability (e.g., IP65 rated enclosures).
Q2: Can you provide customized configurations for capacity or voltage?
A2: Yes. Custom options include battery capacity, nominal voltage (LV 51.2V or HV), and communication protocols (CAN, RS485, Wi-Fi). Both modular and rack-mounted systems are available.
Q3: What is the typical lead time for delivery?
A3: Standard products can be shipped within 7-10 working days. For customized models or large quantities, lead time is typically 20-30 days.
Q4: Do you support third-party inspections before shipment?
A4: Yes. We welcome third-party inspections from agencies like SGS or TUV. Full test reports and compliance certificates are provided before shipment.
Q5: Are these systems compatible with various inverter brands?
A5: Yes. The energy storage systems support open protocols (CAN/RS485) and can be integrated with a wide range of popular inverter brands.
Q6: What is the warranty period for the All-in-One system?
A6: The system comes with a comprehensive 10-year warranty, ensuring long-term reliability and performance for home energy storage.
